Hydraulic Adapters · Elbow, 90°, Male-Female, Swivel, OFS

FS6500-06-06

FS6500-06-06, Hydraulic Adapters, Elbow, 90°, Male-Female, Swivel, OFS 11/16-16 11/16-16

Product image
FS6500-06-06 product image

$6.68 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Connection 1 thread11/16-16
Connection 2 thread11/16-16

Values without units follow the drawing.

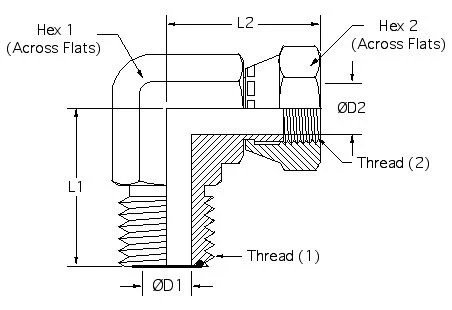

Drawing & dimensions

FS6500-06-06 dimension drawing
L10.98
L21.15
D10.264
D20.264
Hex 13/4
Hex 213/16
Thread 111/16-16
Thread 211/16-16
Item envelope L × W × H (in)1.47 × 1.725 × 0.264
Unit weight (lb)0.22

Lettered dimensions refer to the drawing for this part.

Drawings & photo downloads

Public previews are available above. A free account is required to download original files; sign in once and every file downloads in one click.You're signed in. Files download straight to your computer.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$6.68
2+$4.18
3+$3.35
4+$2.93
5+$2.68
10+$1.65
25+$1.24
50+$1.00
75+$0.86
100+$0.77

Product information

Material: low carbon steel Finish: zinc plated

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
