MCPTurnbuckles · 10-32 LH and RH Threads
FT187F-3.312
FT187F-3.312, Turnbuckles, 10-32 LH and RH Threads 3.312 Overall Length 0.500 Thickness Plated Zinc Yellow Forged
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.69 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.69 |
| 2+ | $10.63 |
| 3+ | $8.99 |
| 4+ | $8.58 |
| 5+ | $8.33 |
| 10+ | $6.05 |
| 25+ | $5.26 |
| 50+ | $3.97 |

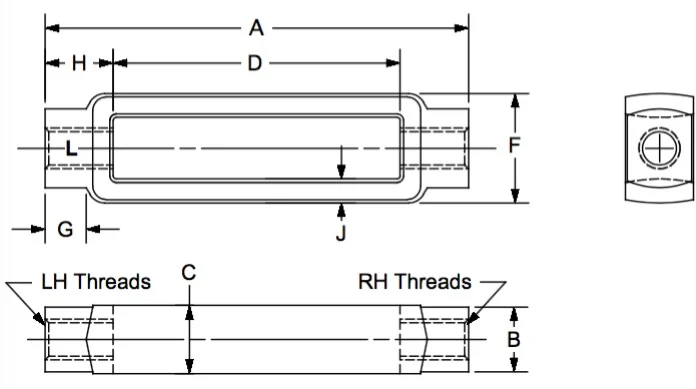

Drawing dimensions
| Threads LH/RH | 10-32 |
|---|---|
| A | 3.312 |
| B | 0.500 |
| C | 0.500 |
| D | 2.312 |
| F | 0.812 |
| H | 0.500 |
| J | 0.187 |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: Our turnbuckles are forged from low carbon steel, machined to specifications, and then plated zinc with a yellow chromate finish.
Specials: Special lengths and thread sizes are available involume (ie: > 1000 pieces).
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
