MCPMFG

Turnbuckles · 3/8-16 LH and RH Threads

FT375C-3.875

FT375C-3.875, Turnbuckles, 3/8-16 LH and RH Threads 3.875 Overall Length 0.593 Thickness Plated Zinc Yellow Forged

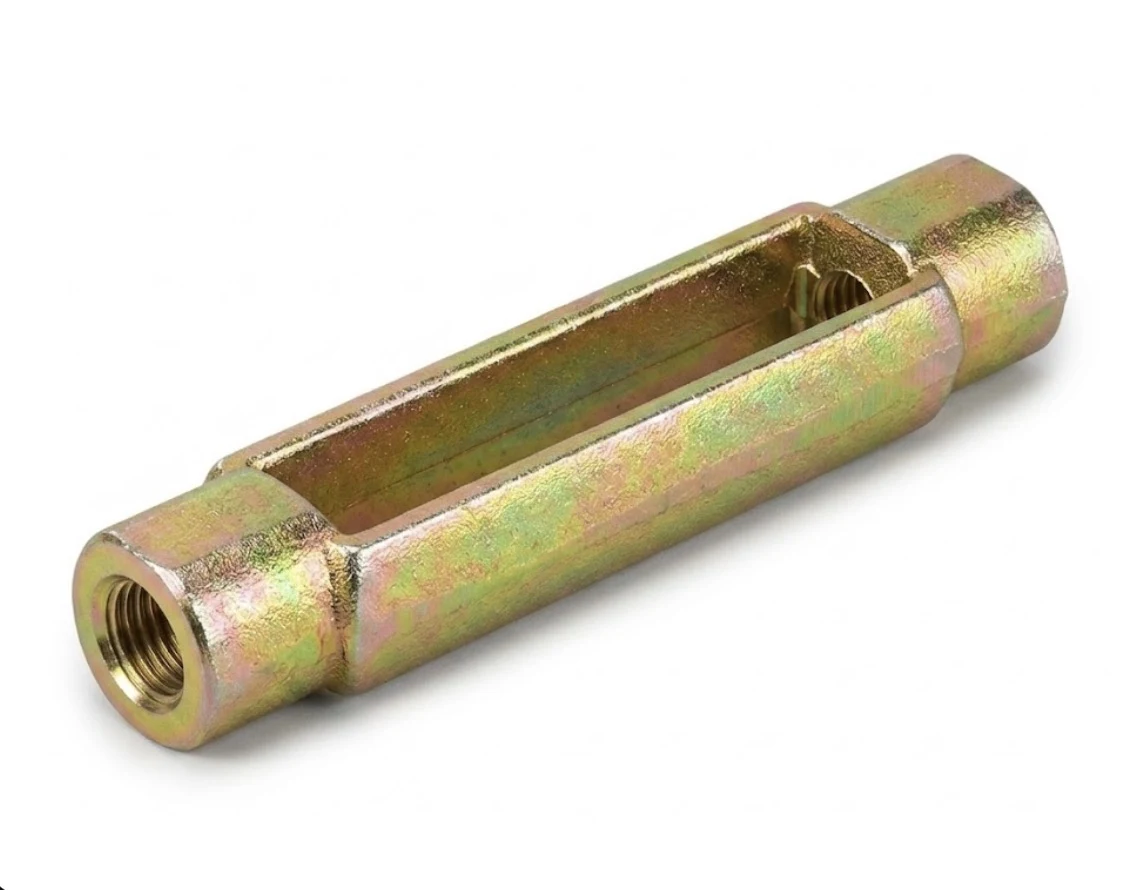

Product image
FT375C-3.875 product image

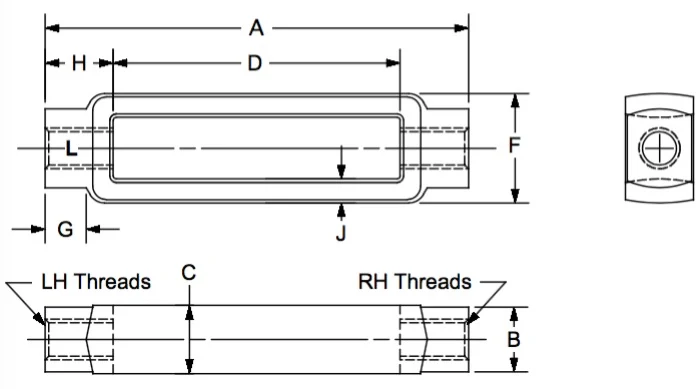

Dimension drawing 1
FT375C-3.875 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$8.61 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$8.61
2+$6.11
3+$5.22
4+$4.80
5+$3.47
10+$2.73
25+$1.89
50+$1.64
100+$1.23
150+$1.22
300+$1.08

Drawing dimensions

Threads LH/RH3/8-16
A3.875
B0.625
C0.593
D2.687
F1.000
H0.593
J0.218

Lettered dimensions refer to the drawing for this part.

Product information

Construction: Our turnbuckles are forged from low carbon steel, machined to specifications, and then plated zinc with a yellow chromate finish. Specials: Special lengths and thread sizes are available involume (ie: > 1000 pieces).
