Bushings, Bronze and Polyurethane · Flange

FTPB-1.125-0.687-0.750-B

FTPB-1.125-0.687-0.750-B, Bushings, Bronze and Polyurethane, Flange 3/4 Bore Fits Tube ID of 1.125 0.187 Flange Width Polyurethane Black

Product image
FTPB-1.125-0.687-0.750-B product image

3D CAD preview

Drag to rotate · scroll or pinch to zoom · right-drag or two fingers to pan.

CAD models are for reference only. We do not guarantee the accuracy of CAD models; the part drawing is the official source of dimensional data.

$10.02 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Nominal size3/4
Fits tube inside diameter1.125
ColorBlack

Values without units follow the drawing.

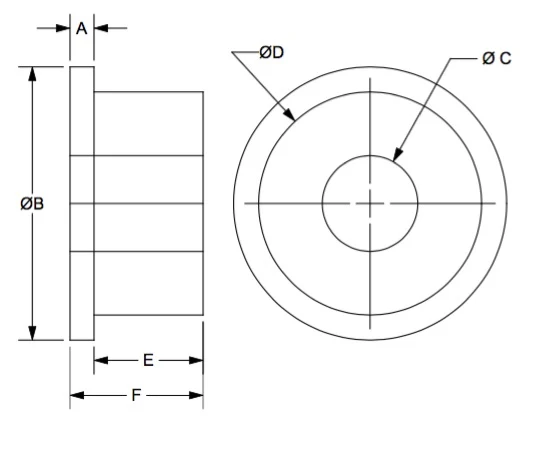

Drawing & dimensions

FTPB-1.125-0.687-0.750-B dimension drawing
Nominal3/4
A0.187
B1.375
C0.750
D1.125
E0.500
F0.687
ColorBlack
Item envelope L × W × H (in)0.687 × 1.375 × 1.375
Unit weight (lb)0.02

Lettered dimensions refer to the drawing for this part.

CAD & file downloads

CAD models are for reference only. We do not guarantee the accuracy of CAD models; the part drawing is the official source of dimensional data.

Public previews are available above. A free account is required to download original files; sign in once and every file downloads in one click.You're signed in. Files download straight to your computer.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$10.02
2+$7.44
3+$5.10
4+$4.68
8+$3.73
12+$3.10
24+$2.55
48+$2.25
96+$1.68
132+$1.51
264+$1.49
528+$1.35
792+$1.18

Product information

Material: molded polyurethane Color: Black
