GCE-80 (grooved conduit fitting)
GCE-80 (grooved conduit fitting), Cable Assemblers Subcomponents, Grooved Conduit Fitting 3/8-24 Nominal Size
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$19.95 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Internal thread | 11/16-16 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $19.95 |
| 2+ | $16.00 |
| 3+ | $13.34 |
| 4+ | $12.92 |
| 5+ | $11.22 |
| 10+ | $9.80 |
| 25+ | $7.32 |
| 50+ | $6.49 |
| 100+ | $5.89 |
| 250+ | $5.13 |
| 500+ | $4.39 |
| 1,000+ | $4.31 |
| 2,500+ | $4.30 |
Drawing dimensions
| Internal Thread | 11/16-16 |
|---|---|
| A | 2.880 |
| B | 1.500 |
| C | 0.203 |
| D | 0.075 |
| E | 0.280 |
| G | 0.655 |
| J | 0.750 |
| L | 0.560 |
| M | 0.484 |
| N | 0.260 |
| O | 0.190 |
| P | 0.581 |
| Q | 0.620 |
| S | 1.250 |

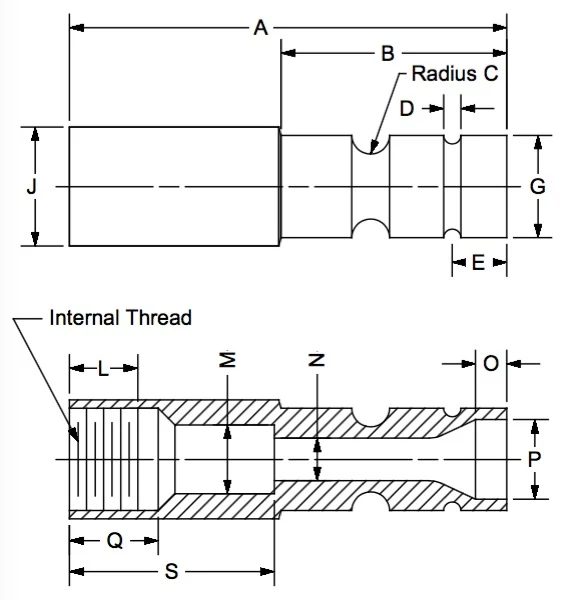

Lettered dimensions refer to the drawing for this part.
