MCPTurnbuckles · 1/4-28 LH and RH Threads
HBT4-22.00
HBT4-22.00, Turnbuckles, 1/4-28 LH and RH Threads 22.00 Overall Length 23.450 to 24.624 overall length range if spherical rod ends added Zinc Yellow Plated Steel Hex Bar Tube

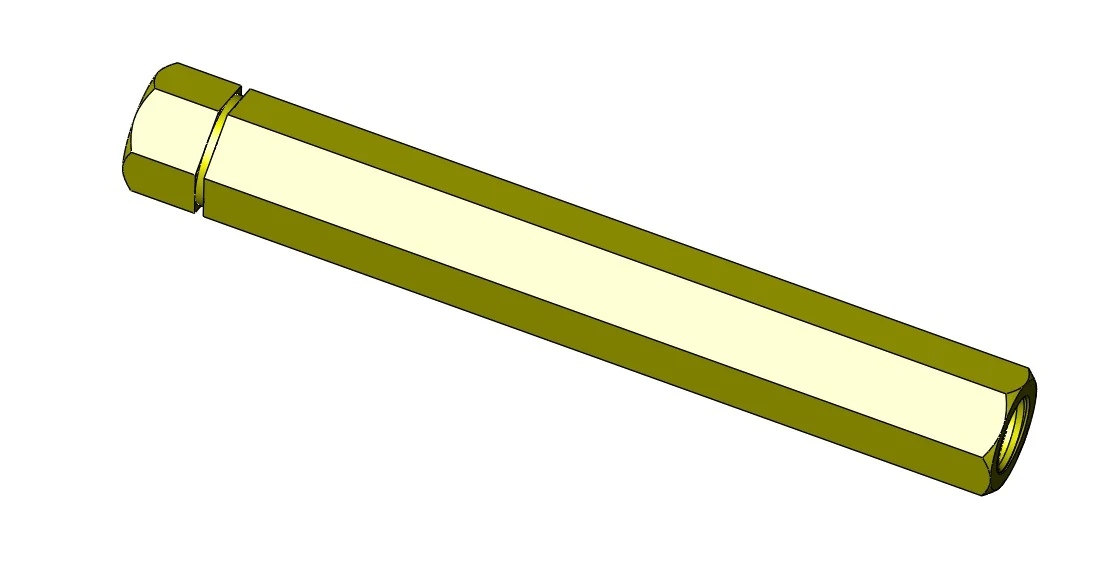

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$27.39 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Length | 22 |
|---|---|
| Thread length | 1.25 |
| Material | Zinc Yellow |
| Thread | 1/4-28 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $27.39 |
| 2+ | $21.88 |
| 3+ | $18.63 |
| 4+ | $18.21 |
| 5+ | $16.45 |
| 10+ | $12.33 |
| 25+ | $10.82 |
| 50+ | $10.11 |
| 100+ | $8.51 |
| 250+ | $7.28 |
| 500+ | $7.15 |
| 1,000+ | $7.15 |

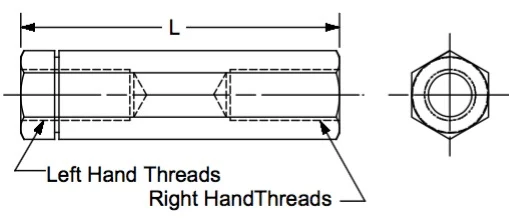

Drawing dimensions
| Threads | 1/4-28 |
|---|---|
| Material | Zinc Yellow |
| Thread Length | 1.250 |
| Part Length | 22.00 |
| Sphcl Rod End Assy | 23.450 to 24.624 |
| Hex Size | 0.438 Hex |
Lettered dimensions refer to the drawing for this part.
Product information
Finish: plated zinc with a yellow dichromate treatment.
Length Determination: the dimensions above show what center-to-center length can be achieved by the connecting linkage length shown for male spherical rod ends.
Material: low carbon steel.
Specials: specials are available at any volume.
Standards: MCP offers standard connecting tube lengths to provide fast and economical linkage options.
Common names for these include turnbuckles, threaded hex bar linkage tubes, threaded adjusters, and coupling nutes.
