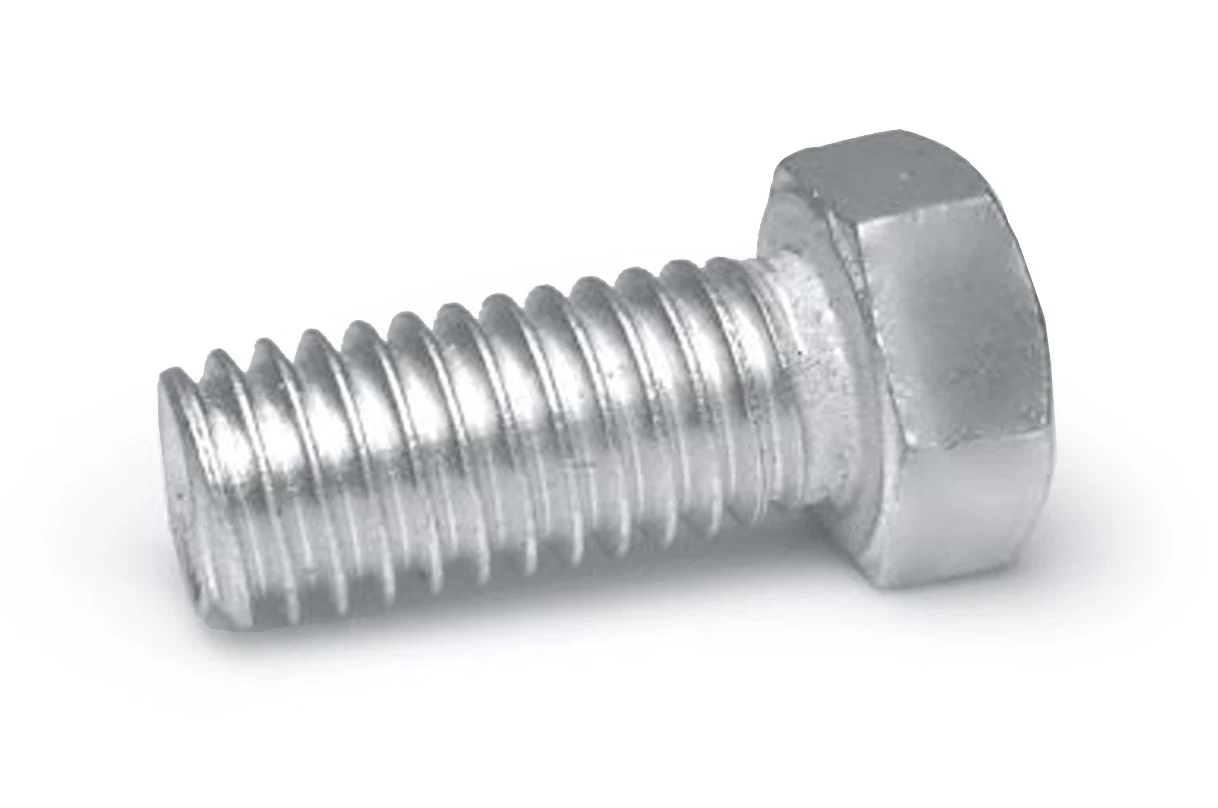

Hex Head Cap Screw, 1/2-20 x 3.00”, Grade 5, ZC
Hex Head Cap Screw, 1/2-20 x 3.00”, Grade 5, ZC, Fasteners, Cap Screws, Hex Head 1/2-20 RH 3.00 Length Grade 5
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$9.57 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/2-20 RH |
|---|---|
| Finish / plating | Zinc Clear |
| Length | 3 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $9.57 |
| 2+ | $6.99 |
| 3+ | $6.16 |
| 4+ | $4.37 |
| 5+ | $4.12 |
| 10+ | $3.32 |
| 25+ | $2.34 |
| 50+ | $2.05 |
| 75+ | $1.56 |
| 100+ | $1.54 |
| 250+ | $1.36 |
| 500+ | $1.23 |

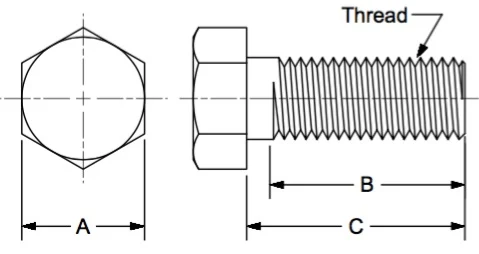

Drawing dimensions
| Threads | 1/2-20 RH |
|---|---|
| A | 0.75 |
| B min | 1.25 |
| C | 3.00 |
| Finish | Zinc Clear |
Lettered dimensions refer to the drawing for this part.
Product information
Application: As appropriate to each cap screw's size and grade, these are typically used in anything from off-highway cab linkage control assemblies, to automotive aftermarket suspension pieces (ie: grade 8). Other names include bolts and suspension bolts.
