Hex Head Cap Screw, 3/8-16 x 5.50, Plain, Grade 2
Hex Head Cap Screw, 3/8-16 x 5.50, Plain, Grade 2, Fasteners, Cap Screws, Hex Head 3/8-16 RH 5.50 Length Grade 2
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.12 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 3/8-16 RH |
|---|---|
| Finish / plating | None |
| Length | 5.5 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.12 |
| 2+ | $2.62 |
| 3+ | $1.79 |
| 4+ | $1.37 |
| 5+ | $1.12 |
| 10+ | $0.62 |
| 25+ | $0.32 |
| 50+ | $0.22 |
| 75+ | $0.19 |
| 100+ | $0.17 |
| 250+ | $0.11 |
| 500+ | $0.09 |

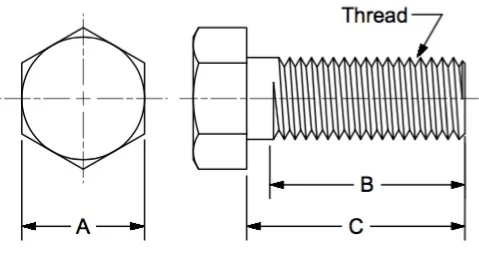

Drawing dimensions
| Threads | 3/8-16 RH |
|---|---|
| A | 0.563 |
| B min | 1.00 |
| C | 5.50 |
| Finish | None |
Lettered dimensions refer to the drawing for this part.
Product information
Application: As appropriate to each cap screw's size and grade, these are typically used in anything from off-highway cab linkage control assemblies, to automotive aftermarket suspension pieces (ie: grade 8). Other names include bolts and suspension bolts.
