MCPHydraulic Hose End Fittings · Crimp Ferrule
HF-06

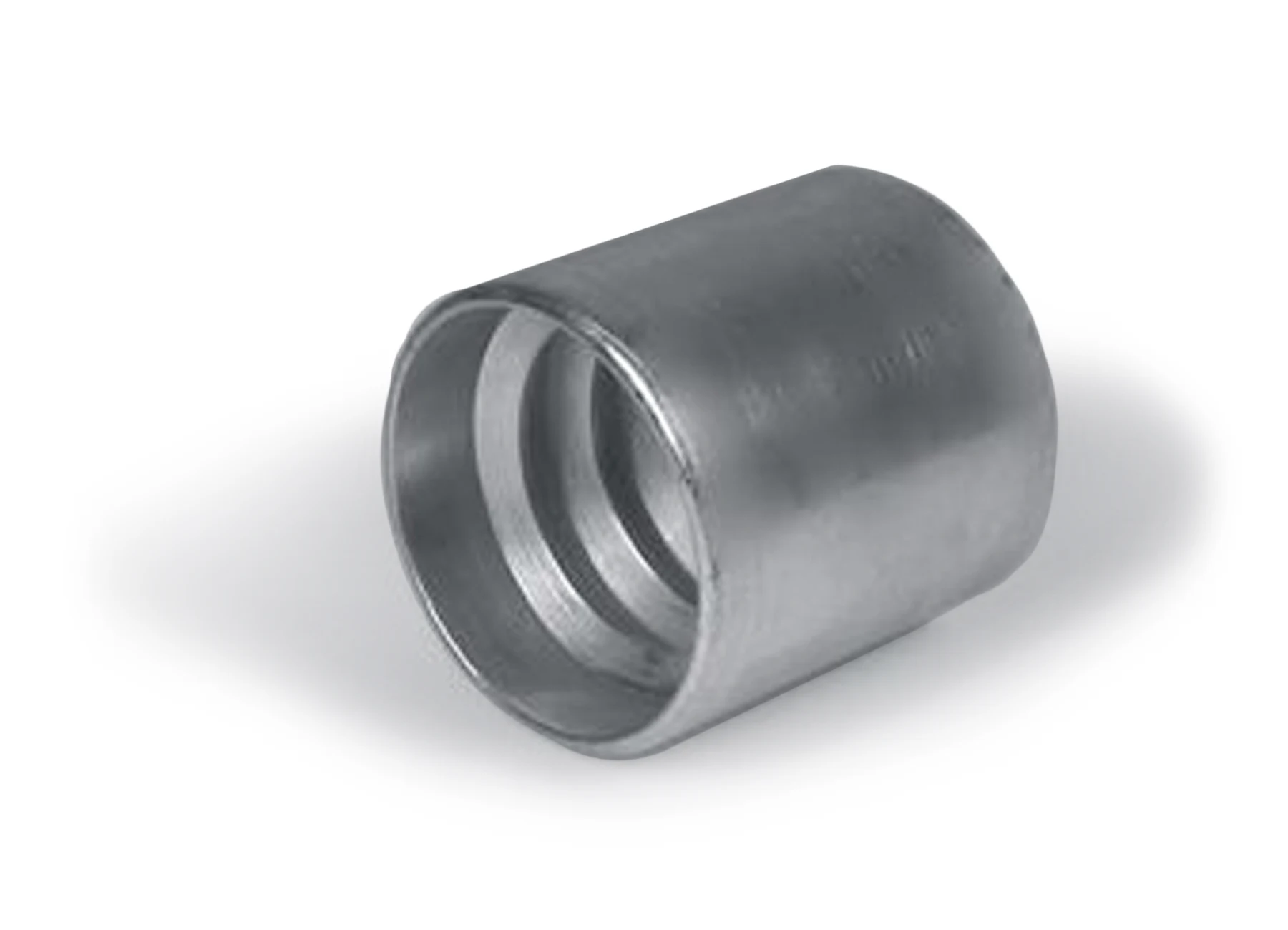

HF-06, Hydraulic Hose End Fittings, Crimp Ferrule 3/8 Ferrule
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.35 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 3/8 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.35 |
| 2+ | $2.85 |
| 3+ | $2.02 |
| 4+ | $1.60 |
| 5+ | $1.35 |
| 10+ | $0.85 |
| 25+ | $0.55 |
| 50+ | $0.34 |
| 100+ | $0.27 |
| 250+ | $0.21 |
| 500+ | $0.16 |
| 1,000+ | $0.12 |
Drawing dimensions
| Hose ID | 3/8 |
|---|---|
| L | 1.000 |
| OD | 1.060 |
| ID | .793 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
