Rod End Misalignment Inserts · fits 3/8 Rod End Bore

HMBAL-6-4

HMBAL-6-4, Rod End Misalignment Inserts, fits 3/8 Rod End Bore 1/4 Insert Bore Size Straight Style Aluminum

Product image
HMBAL-6-4 product image

$16.19 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

MaterialAluminum

Values without units follow the drawing.

Drawing & dimensions

HMBAL-6-4 dimension drawing
MaterialAluminum
A0.3710
B0.396
C0.562
D0.590
E0.358
F0.5138
G0.2550
J0.046
K0.060
N0.2315
R10.356
R20.083
Fits3/8
Item envelope L × W × H (in)0.59 × 0.562 × 0.562
Unit weight (lb)0.005

Lettered dimensions refer to the drawing for this part.

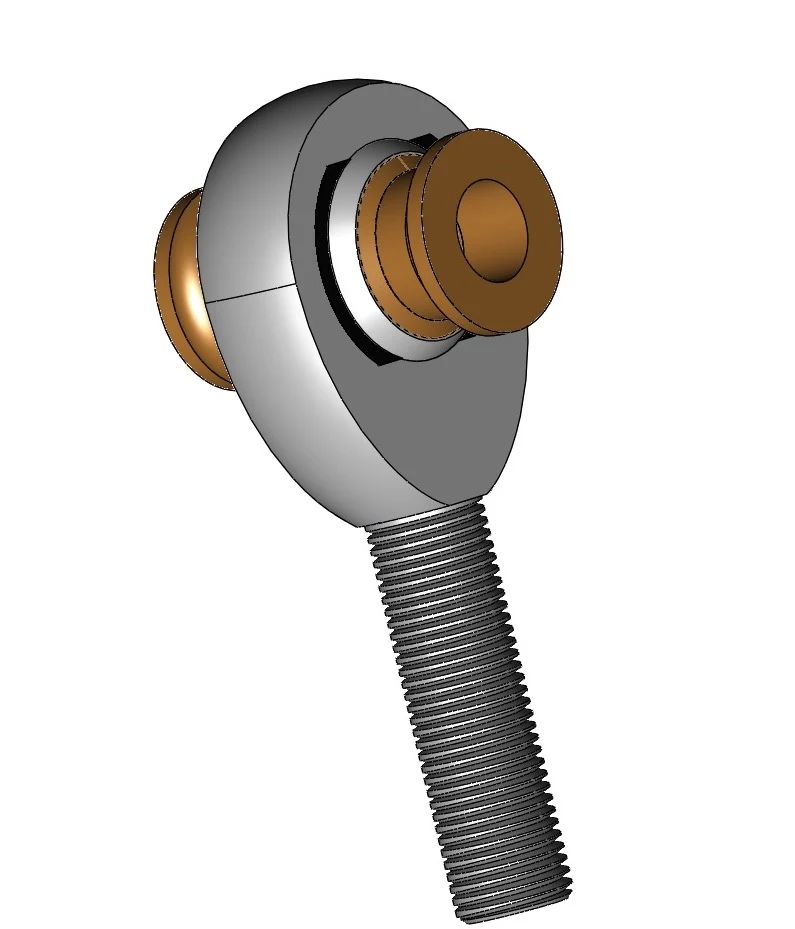

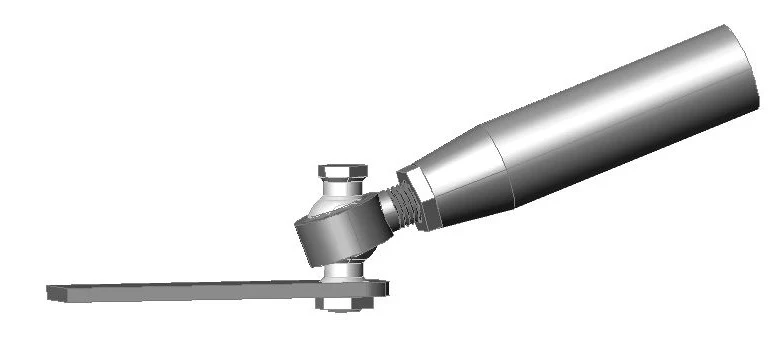

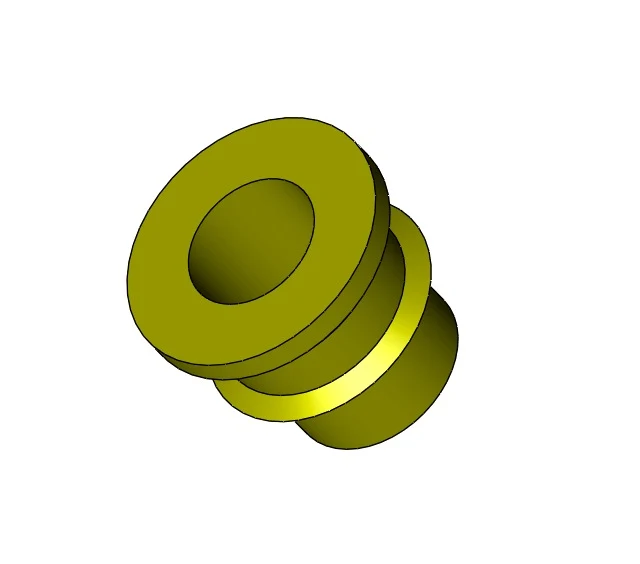

Additional photos
Additional product photo
HMBAL-6-4 additional product photo
Additional product photo
HMBAL-6-4 additional product photo
Additional product photo
HMBAL-6-4 additional product photo

Drawings & photo downloads

Public previews are available above. A free account is required to download original files; sign in once and every file downloads in one click.You're signed in. Files download straight to your computer.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$16.19
2+$10.27
3+$8.69
4+$8.27
5+$8.02
10+$5.81
25+$5.04
50+$3.80
100+$3.37

Product information

Application: High Misalignment Inserts are used in conjunction with hex head cap screws (bolts) to increase the misalignment of the rod end. The insert keeps the head of the hex head cap screw (bolt) away from the rod end housing, thereby increasing the misalignment of the rod end. Alternatives: Most of our rod ends are available with 'factory installed' rod end bolts. Or, we also offer 'field installable' rod end studs.

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov

More rod end misalignment inserts

Compare specifications and drawings to select the right part.
