MCPRod End Misalignment Inserts · fits 3/4 Rod End Bore
HMBV-12-8-A
HMBV-12-8-A, Rod End Misalignment Inserts, fits 3/4 Rod End Bore 1/2 Insert Bore Size V Style Chrome Plated Steel
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$15.37 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Material | Chrome Plated Steel |
|---|---|
| Fits rod end | 3/4 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $15.37 |
| 2+ | $11.85 |
| 3+ | $11.02 |
| 4+ | $9.34 |
| 8+ | $7.71 |
| 16+ | $6.77 |
| 32+ | $5.09 |
| 48+ | $4.53 |
| 96+ | $4.48 |

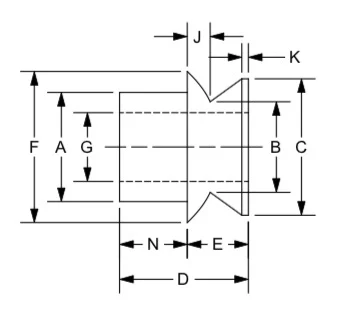

Drawing dimensions
| Fits Rod End | 3/4 |
|---|---|
| Yields | 1/2 |
| A | .749 |
| B | .623 |
| C | 1 |
| D | .894 |
| E | .475 |
| F | .966 |
| G | .505 |
| J | .135 |
| K | .125 |
| N | .419 |
Lettered dimensions refer to the drawing for this part.
