MCPRod End Misalignment Inserts · fits 1.0 Rod End Bore
HMBV-16-12-A
HMBV-16-12-A, Rod End Misalignment Inserts, fits 1.0 Rod End Bore 3/4 Insert Bore Size V Style Chrome Plated Steel
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$12.31 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Material | Chrome Plated Steel |
|---|---|
| Fits rod end | 1 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $12.31 |
| 2+ | $9.69 |
| 3+ | $6.66 |
| 4+ | $6.25 |
| 8+ | $5.13 |
| 16+ | $3.73 |
| 24+ | $3.31 |
| 48+ | $2.48 |
| 100+ | $2.19 |
| 200+ | $2.16 |
| 400+ | $1.97 |
| 600+ | $1.71 |
| 800+ | $1.71 |

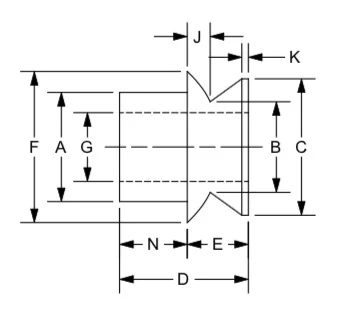

Drawing dimensions
| Fits Rod End | 1.0 |
|---|---|
| Yields | 3/4 |
| A | .874 |
| B | .685 |
| C | 1.03 |
| D | 1.031 |
| E | .31 |
| F | 1.02 |
| G | .505 |
| J | .138 |
| K | .125 |
| N | .406 |
Lettered dimensions refer to the drawing for this part.
