MCPHydraulic Hose End Fittings · Female ORFS Bent Stem
HSF-FS-SW-T90M-04-06

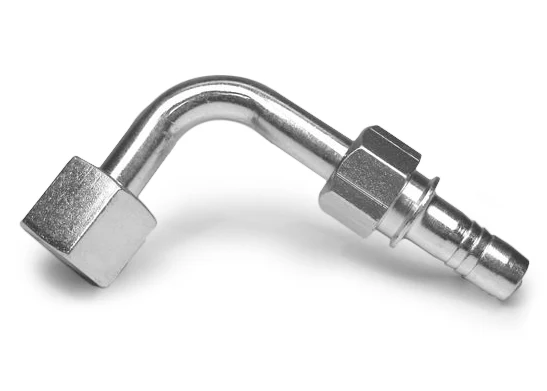

HSF-FS-SW-T90M-04-06, Hydraulic Hose End Fittings, Female ORFS Bent Stem Stem, Female Swivel OFS, Bent Tube, 90° Medium Drop, Steel 1/4
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$15.04 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 1/4 |
|---|---|
| Thread | 11/16-16 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $15.04 |
| 2+ | $9.48 |
| 3+ | $7.96 |
| 4+ | $7.55 |
| 5+ | $7.30 |
| 10+ | $5.27 |
| 25+ | $4.54 |
| 50+ | $3.42 |
| 100+ | $3.03 |
| 250+ | $2.75 |
| 500+ | $2.40 |
| 1,000+ | $2.05 |

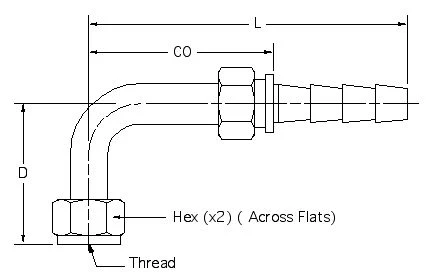

Drawing dimensions
| Hose ID | 1/4 |
|---|---|
| Thread | 11/16-16 |
| Hex | 13/16 |
| D | 1.500 |
| L | 2.850 |
| CO | 1.985 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More hydraulic hose end fittings
Compare specifications and drawings to select the right part.
