MCPHydraulic Hose End Fittings · JIC Female Swivel Bent Stem
HSF-JC-SW-T30S-10-12

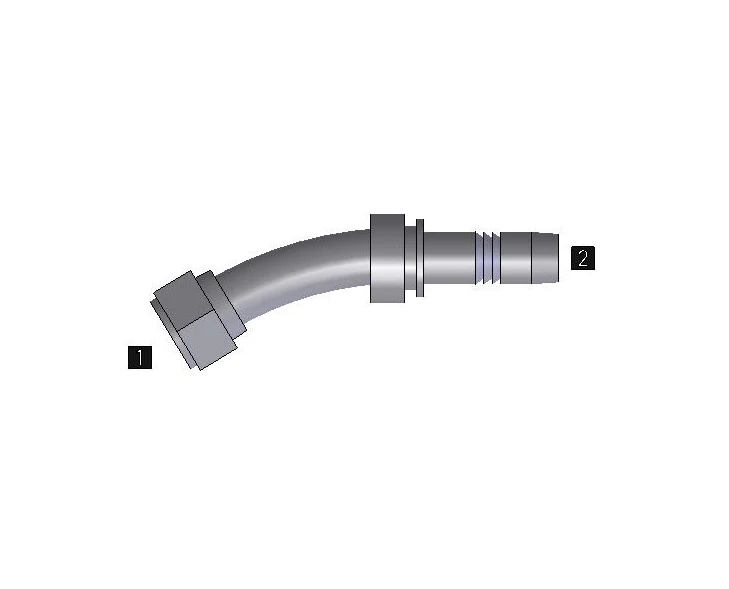

HSF-JC-SW-T30S-10-12, Hydraulic Hose End Fittings, JIC Female Swivel Bent Stem 5/8 Stem, Female Swivel JIC 37°, Bent Tube, 30° Short Drop, Steel
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.36 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 5/8 |
|---|---|
| Thread | 1-1/16-12 |
| Fitting length | 3.655 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.36 |
| 2+ | $12.75 |
| 3+ | $11.92 |
| 4+ | $10.11 |
| 5+ | $9.86 |
| 10+ | $7.56 |
| 25+ | $5.60 |
| 50+ | $4.95 |
| 100+ | $4.62 |
| 250+ | $3.90 |
| 500+ | $3.33 |
| 1,000+ | $3.28 |

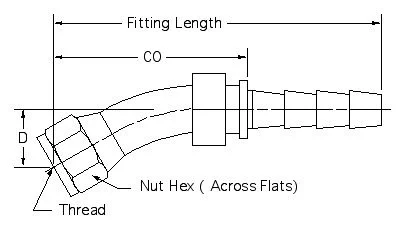

Drawing dimensions
| Hose ID | 5/8 |
|---|---|
| Thread | 1-1/16-12 |
| Hex | 1-1/4 |
| D | 0.480 |
| Fitting Length | 3.655 |
| CO | 2.49 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
