HSF-JC-SW-T90M-06-06

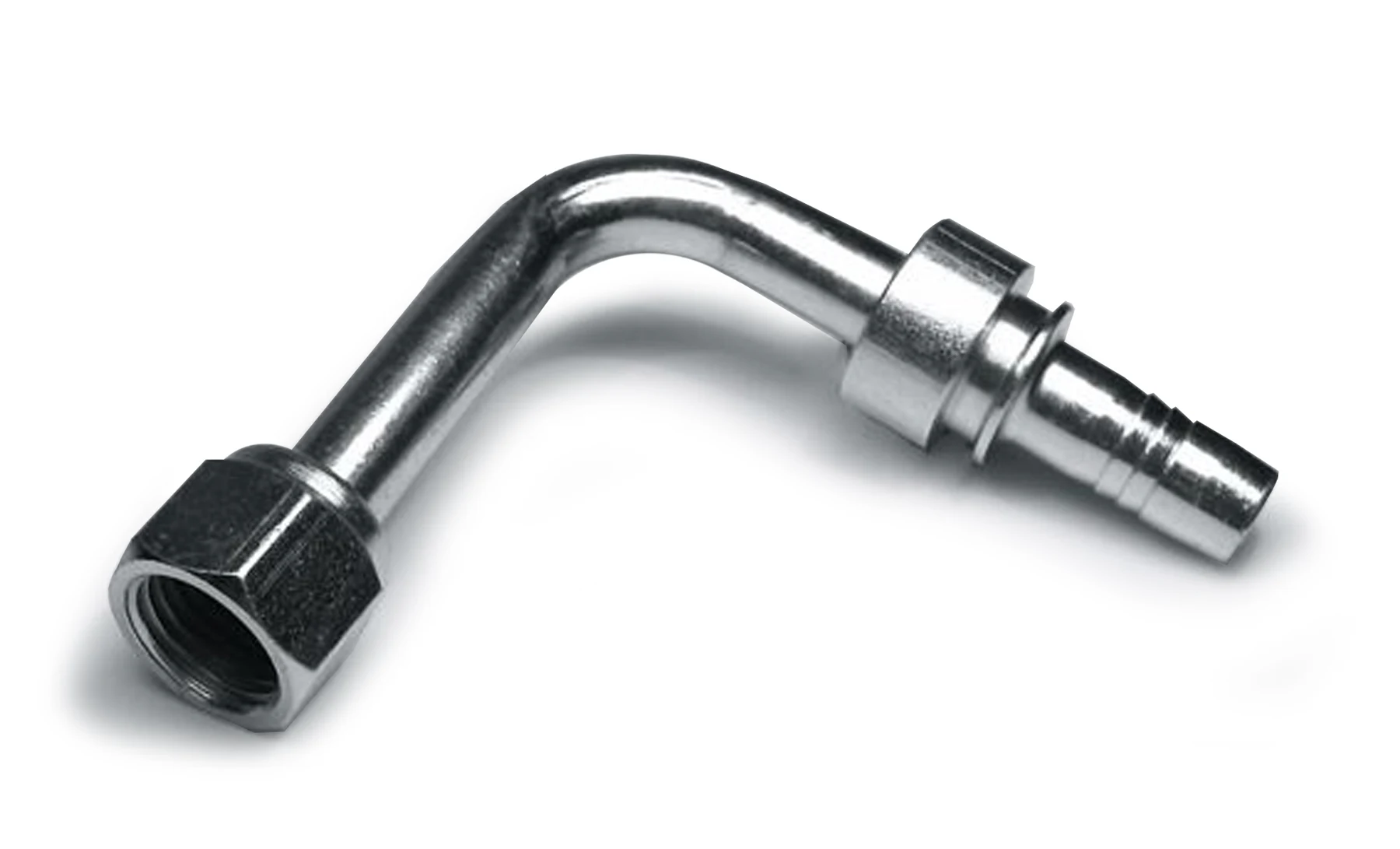

HSF-JC-SW-T90M-06-06, Hydraulic Hose End Fittings, JIC Swivel Female Stem 3/8 9/16-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.58 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 3/8 |
|---|---|
| Thread | 9/16-18 |
| Fitting length | 2.575 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.58 |
| 2+ | $12.95 |
| 3+ | $12.11 |
| 4+ | $10.29 |
| 5+ | $10.04 |

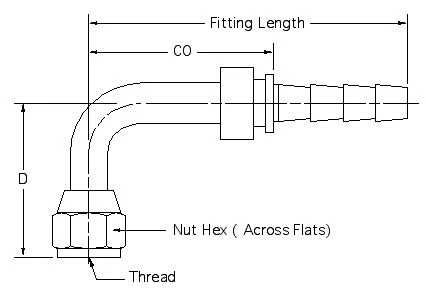

Drawing dimensions
| Hose ID | 3/8 |
|---|---|
| Thread | 9/16-18 |
| Hex | 11/16 |
| D | 1.130 |
| Fitting Length | 2.575 |
| CO | 1.670 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
Compatible with NRP Jones hydraulic hoses
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
