MCPHydraulic Hose End Fittings · Female NPSM Swivel stem
HSF-PS-SW-06-04
HSF-PS-SW-06-04, Hydraulic Hose End Fittings, Female NPSM Swivel stem 3/8 Female Pipe Swivel
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.15 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 3/8 |
|---|---|
| Thread | 1/4-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.15 |
| 2+ | $5.65 |
| 3+ | $4.77 |
| 4+ | $4.35 |
| 5+ | $3.16 |
| 10+ | $2.45 |
| 25+ | $1.88 |
| 50+ | $1.44 |
| 100+ | $1.08 |
| 250+ | $0.94 |
| 500+ | $0.88 |
| 1,000+ | $0.75 |

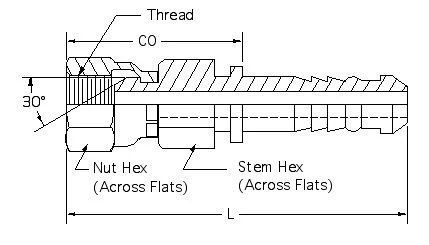

Drawing dimensions
| Hose ID | 3/8 |
|---|---|
| Thread | 1/4-18 |
| Stem Hex | 11/16 |
| Nut Hex | 11/16 |
| L | 1.960 |
| CO | 1.079 |
| Stem ID | .250 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
