MCPHydraulic Hose End Fittings · Female NPTF Stem
HSF-PT-SW-06-06
HSF-PT-SW-06-06, Hydraulic Hose End Fittings, Female NPTF Stem Stem, Female Swivel Pipe (NPTF) with “O” Ring, Steel 3/8 3/8-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.86 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 3/8 |
|---|---|
| Thread | 3/8-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.86 |
| 2+ | $10.75 |
| 3+ | $9.11 |
| 4+ | $8.69 |
| 5+ | $7.44 |
| 10+ | $6.13 |
| 25+ | $4.13 |
| 50+ | $3.63 |
| 100+ | $3.58 |
| 250+ | $2.84 |
| 500+ | $2.43 |
| 1,000+ | $2.42 |

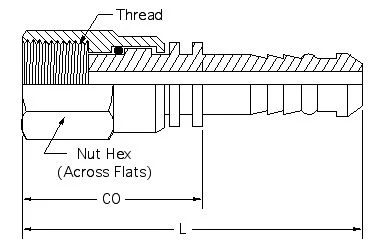

Drawing dimensions
| Hose ID | 3/8 |
|---|---|
| Thread | 3/8-18 |
| Hex | 7/8 |
| L | 2.500 |
| CO | 1.695 |
| Stem ID | .296 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
