MCPHydraulic Hose End Fittings · Female Swivel SAE Bent Stem
HSF-SA-SW-T90M-06-06

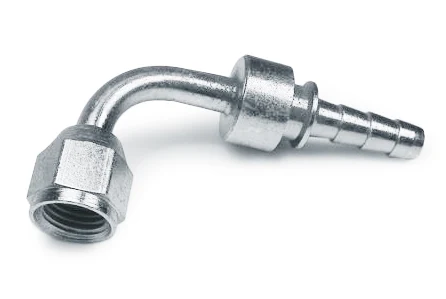

HSF-SA-SW-T90M-06-06, Hydraulic Hose End Fittings, Female Swivel SAE Bent Stem Stem, Female Swivel SAE 45°, Bent Tube, 90° Medium Drop, Steel 3/8 Hose ID 5/8-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$13.73 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 3/8 |
|---|---|
| Thread | 5/8-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $13.73 |
| 2+ | $8.47 |
| 3+ | $7.63 |
| 4+ | $6.64 |
| 5+ | $6.39 |
| 10+ | $5.16 |
| 25+ | $3.92 |
| 50+ | $2.95 |
| 100+ | $2.60 |
| 250+ | $2.36 |
| 500+ | $2.06 |
| 1,000+ | $1.75 |

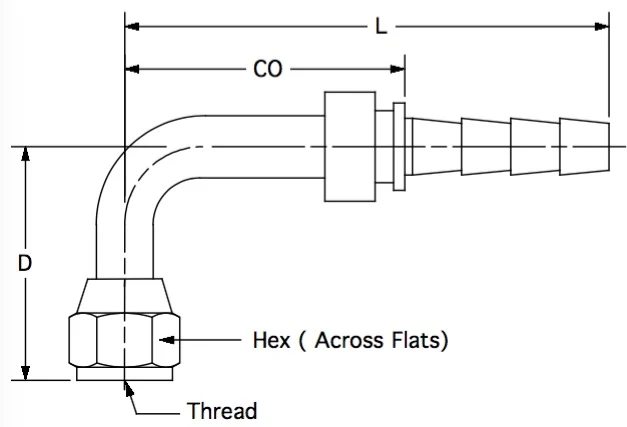

Drawing dimensions
| Hose ID | 3/8 |
|---|---|
| Thread | 5/8-18 |
| Hex | 3/4 |
| D | 1.160 |
| L | 2.675 |
| CO | 1.765 |
| Stem ID | .296 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
