Hydraulic Hose End Fittings · Female SAE Swivel Bent Stem

HSF-SA-SW-T90S-08-08

HSF-SA-SW-T90S-08-08, Hydraulic Hose End Fittings, Female SAE Swivel Bent Stem Stem, Female Swivel SAE 45°, Bent Tube, 90° Short Drop, Steel 1/2 Hose ID 3/4-16

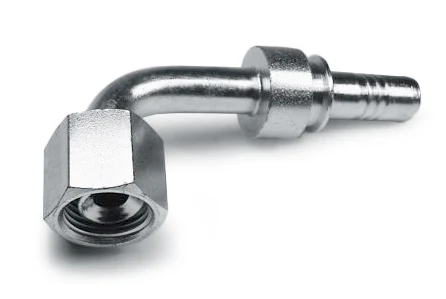

Product image
HSF-SA-SW-T90S-08-08 product image
Dimension drawing 1
HSF-SA-SW-T90S-08-08 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$16.64 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Hose inside diameter1/2
Thread3/4-16

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$16.64
2+$10.59
3+$8.97
4+$8.55
5+$8.30
10+$6.02
25+$5.23
50+$3.95
100+$3.50
250+$3.18
500+$2.77
1,000+$2.38

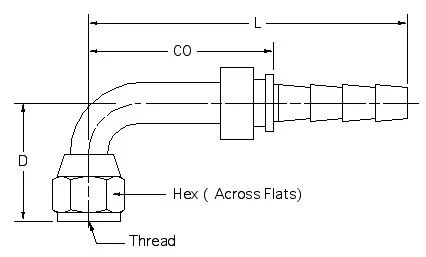

Drawing dimensions

Hose ID1/2
Thread3/4-16
Hex7/8
D1.090
L2.780
CO1.620
Stem ID.406

Lettered dimensions refer to the drawing for this part.

Product information

Material: low carbon steel Finish: zinc plated Caution: Do not mix ferrule, hose and stem suppliers!

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
