HSM-FS-SL-04-04
HSM-FS-SL-04-04, Hydraulic Hose End Fittings, Male ORFS Stem Stem, Male Solid OFS, Steel 1/4
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$9.17 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 1/4 |
|---|---|
| Thread | 9/16-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $9.17 |
| 2+ | $6.67 |
| 3+ | $5.77 |
| 4+ | $4.10 |
| 5+ | $3.85 |
| 10+ | $3.07 |
| 25+ | $2.14 |
| 50+ | $1.87 |
| 100+ | $1.40 |
| 250+ | $1.23 |
| 500+ | $1.16 |
| 1,000+ | $0.98 |

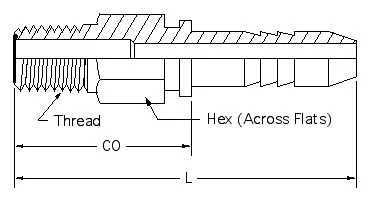

Drawing dimensions
| Hose ID | 1/4 |
|---|---|
| Thread | 9/16-18 |
| Hex | 5/8 |
| L | 1.764 |
| CO | .850 |
| Stem ID | .156 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
