MCPHydraulic Hose End Fittings · JIC Male Stem
HSM-JC-SL-04-04
HSM-JC-SL-04-04, Hydraulic Hose End Fittings, JIC Male Stem 1/4 JIC
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.88 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 1/4 |
|---|---|
| Thread | 7/16-20 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.88 |
| 2+ | $3.38 |
| 3+ | $2.55 |
| 4+ | $2.13 |
| 5+ | $1.88 |
| 10+ | $1.38 |
| 25+ | $0.80 |
| 50+ | $0.64 |
| 100+ | $0.52 |
| 250+ | $0.39 |
| 500+ | $0.30 |
| 1,000+ | $0.27 |
| 2,000+ | $0.24 |

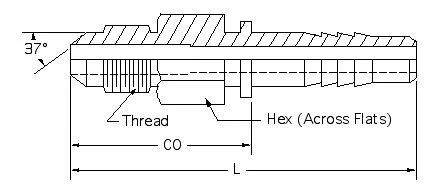

Drawing dimensions
| Hose ID | 1/4 |
|---|---|
| Thread | 7/16-20 |
| Hex | 5/8 |
| Stem ID | .156 |
| L | 1.923 |
| CO | 1.013 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More hydraulic hose end fittings
Compare specifications and drawings to select the right part.
