MCPHydraulic Hose End Fittings · Stem, Male Pipe (NPTF) Solid
HSM-PT-SL-06-04

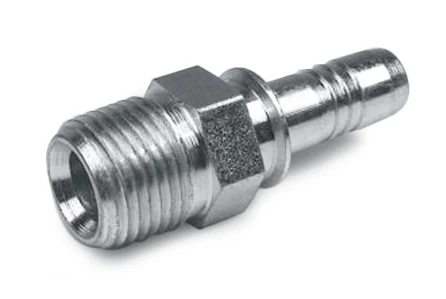

HSM-PT-SL-06-04, Hydraulic Hose End Fittings, Stem, Male Pipe (NPTF) Solid 3/8 1/4-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.82 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 3/8 |
|---|---|
| Thread | 1/4-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.82 |
| 2+ | $4.32 |
| 3+ | $3.49 |
| 4+ | $3.07 |
| 5+ | $2.79 |
| 10+ | $1.74 |
| 25+ | $1.32 |
| 50+ | $0.95 |
| 100+ | $0.82 |
| 250+ | $0.61 |
| 500+ | $0.54 |
| 1,000+ | $0.51 |

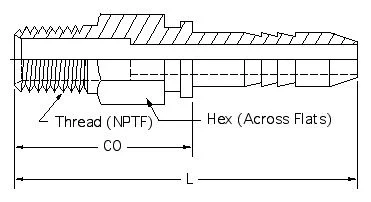

Drawing dimensions
| Hose ID | 3/8 |
|---|---|
| Thread | 1/4-18 |
| Hex | 11/16 |
| Stem ID | .296 |
| L | 1.971 |
| CO | 1.061 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
