MCPHydraulic Hose End Fittings · Male NPTF Stem
HSM-PT-SW-08-08

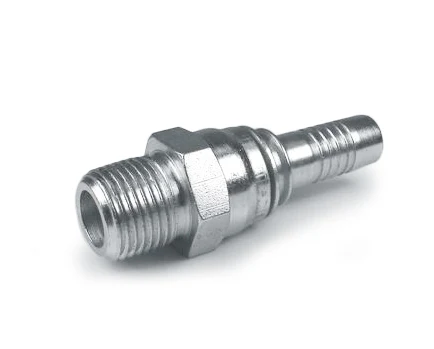

HSM-PT-SW-08-08, Hydraulic Hose End Fittings, Male NPTF Stem 1/2 1/2-14
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$10.73 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 1/2 |
|---|---|
| Thread | 1/2-14 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $10.73 |
| 2+ | $8.13 |
| 3+ | $5.59 |
| 4+ | $5.17 |
| 5+ | $4.92 |
| 10+ | $4.04 |
| 25+ | $2.88 |
| 50+ | $2.54 |
| 100+ | $1.92 |
| 250+ | $1.70 |
| 500+ | $1.54 |
| 1,000+ | $1.34 |

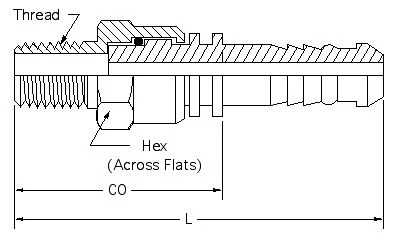

Drawing dimensions
| Hose ID | 1/2 |
|---|---|
| Thread | 1/2-14 |
| Hex | 1 |
| L | 2.955 |
| CO | 1.800 |
| Stem ID | .406 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
