Hydraulic Hose End Fittings · Male NPTF Bent Stem

HSM-PT-SW-N45-06-06

HSM-PT-SW-N45-06-06, Hydraulic Hose End Fittings, Male NPTF Bent Stem Stem, Male Swivel Pipe (NPTF), 45° Bend, Steel 3/8 Hose ID 3/8-18

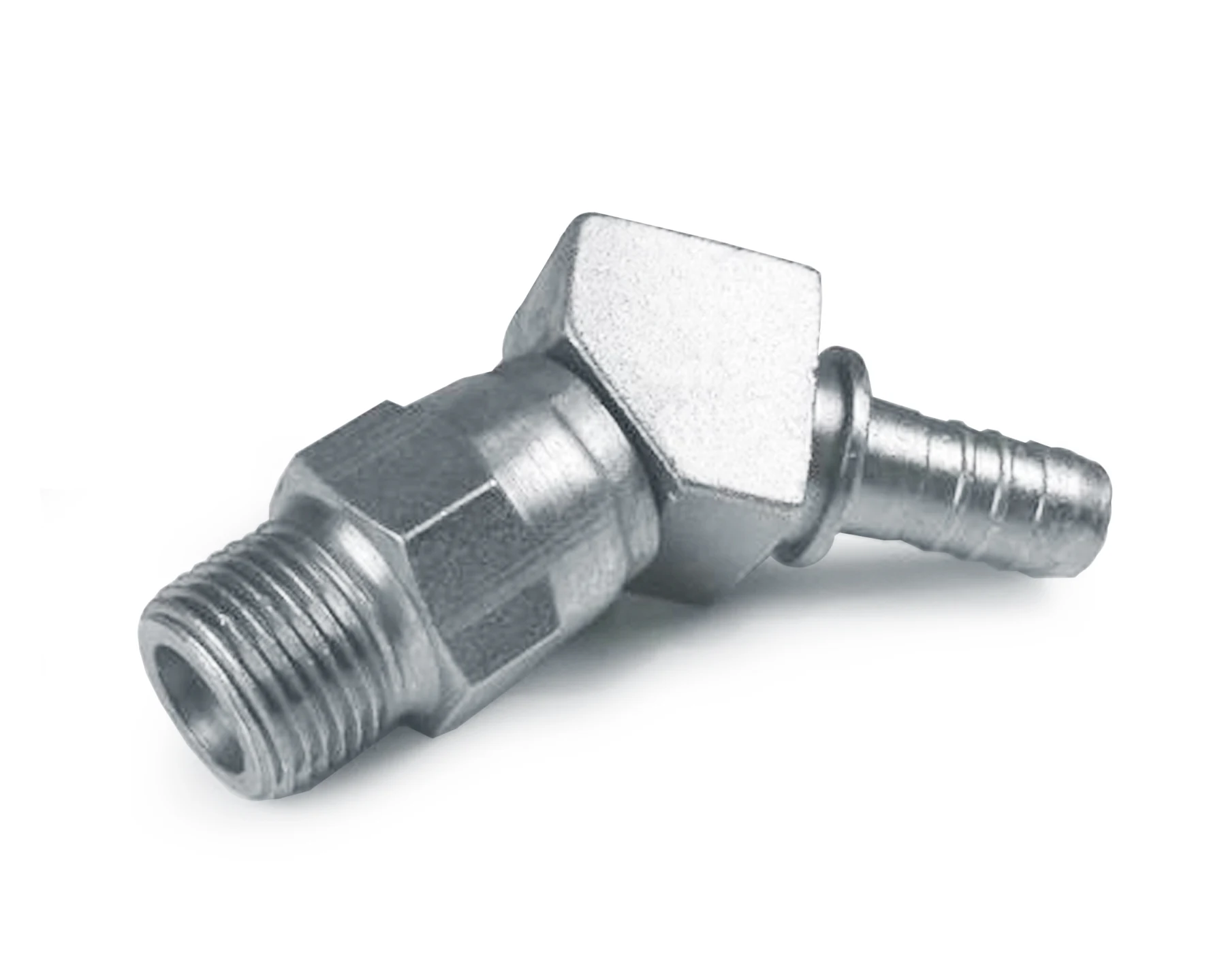

Product image
HSM-PT-SW-N45-06-06 product image

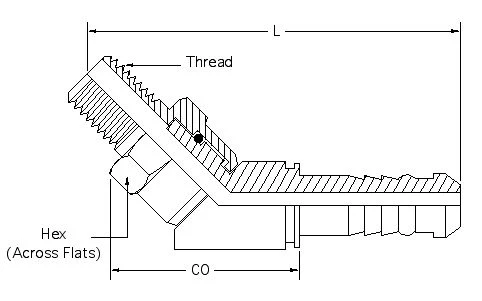

Dimension drawing 1
HSM-PT-SW-N45-06-06 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$15.98 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Hose inside diameter3/8
Thread3/8-18

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$15.98
2+$12.41
3+$11.58
4+$9.82
5+$9.57
10+$7.33
25+$5.43
50+$4.79
100+$4.47
250+$3.77
500+$3.22
1,000+$3.17

Drawing dimensions

Hose ID3/8
Thread3/8-18
Hex13/16
D1.137
L2.700
CO1.790
Stem ID.296

Lettered dimensions refer to the drawing for this part.

Product information

Material: carbon steel Finish: zinc plated Caution: Do not mix ferrule, hose and stem suppliers!

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
