MCPHydraulic Hose End Fittings · Male Swivel ORB Stem
HSM-RB-SW-06-06
HSM-RB-SW-06-06, Hydraulic Hose End Fittings, Male Swivel ORB Stem 3/8 9/16-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$10.00 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Hose inside diameter | 3/8 |
|---|---|
| Thread | 9/16-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $10.00 |
| 2+ | $7.42 |
| 3+ | $6.58 |
| 4+ | $4.67 |
| 5+ | $4.42 |
| 10+ | $3.59 |
| 25+ | $2.54 |
| 50+ | $2.23 |
| 100+ | $1.68 |
| 250+ | $1.48 |
| 500+ | $1.35 |
| 1,000+ | $1.17 |

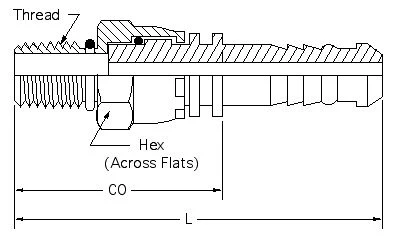

Drawing dimensions
| Hose ID | 3/8 |
|---|---|
| Thread | 9/16-18 |
| Hex | 11/16 |
| L | 2.320 |
| CO | 1.405 |
| Stem ID | .218 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: carbon steel
Finish: zinc plated
Caution: Do not mix ferrule, hose and stem suppliers!
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
