MCPBall Joints · Female
JSB375

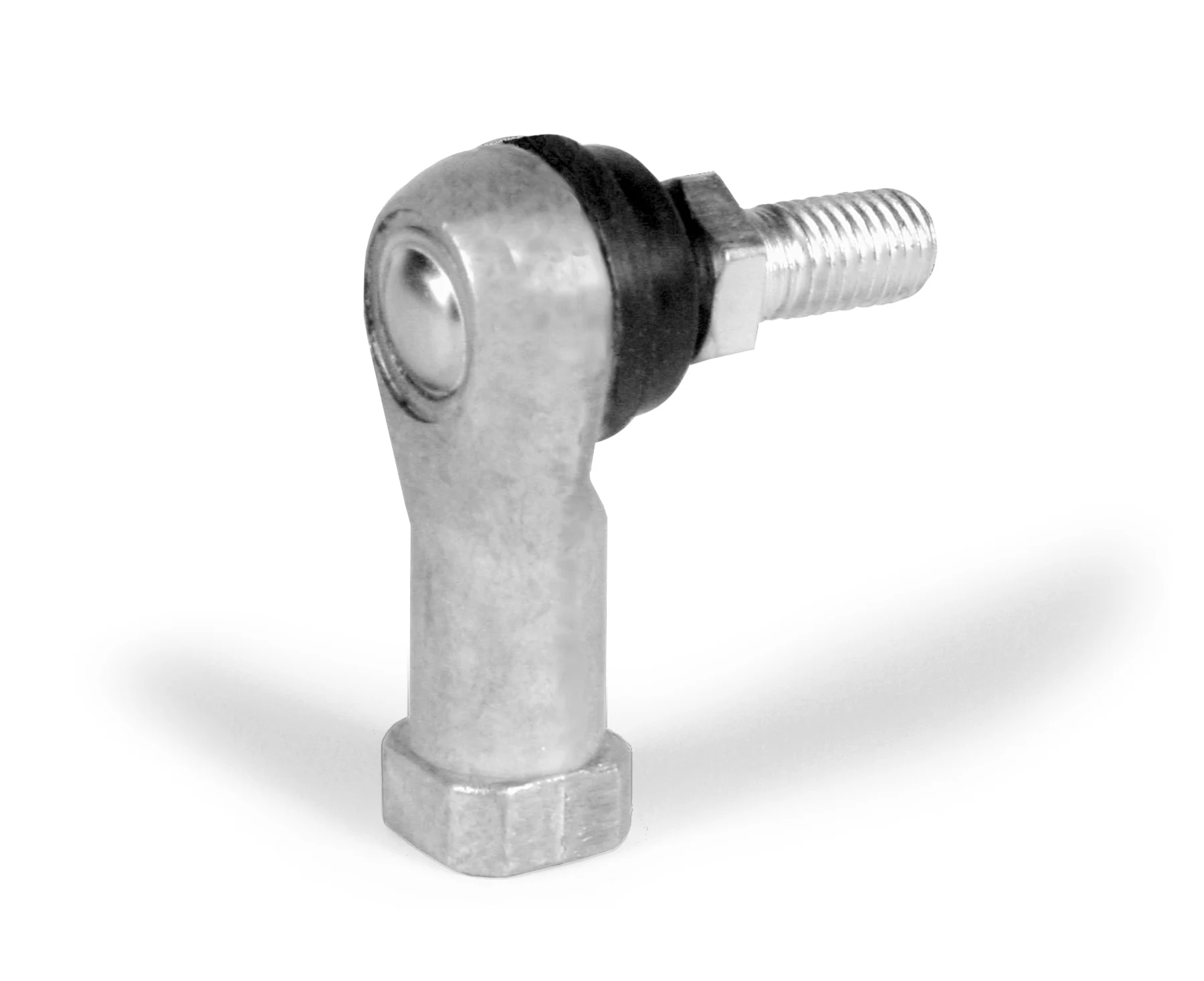

JSB375, Ball Joints, Female 3/8-24 RH Housing 3/8-24 RH Stud Sealed
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.57 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 3/8-24 RH |
|---|---|
| Stud thread | 3/8-24 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.57 |
| 2+ | $10.54 |
| 3+ | $8.93 |
| 4+ | $8.51 |
| 5+ | $8.26 |
| 10+ | $6.00 |
| 30+ | $4.00 |
| 50+ | $3.93 |
| 75+ | $3.51 |
| 150+ | $3.27 |
| 300+ | $2.77 |
| 450+ | $2.76 |
| 600+ | $2.36 |

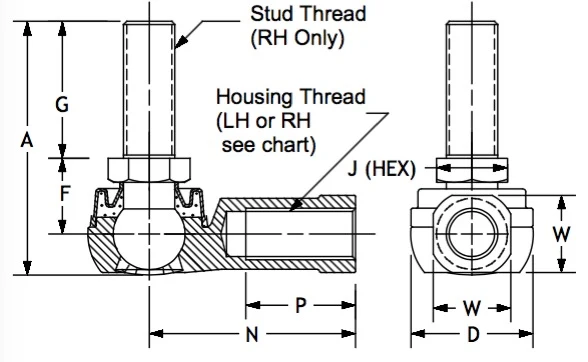

Drawing dimensions
| Housing Threads | 3/8-24 RH |
|---|---|
| Stud Threads | 3/8-24 RH |
| A | 1.929 |
| D | 0.984 |
| F | 0.688 |
| G | 0.875 |
| J (Hex) | 0.500 |
| N | 1.693 |
| P | 0.906 |
| W | 0.669 |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: high strength zinc alloy, zinc plated ball stud, neoprene rubber boot. Bearing cavity filled with high wear lubricant.
Application: our JSB ball joints are targeted toward applications where an ES-style or DMCS-style ball joint is not strong enough, and the cost of a spherical rod end is prohibitive.
