JSI-3F
JSI-3F, Threaded Adaptors, Bulk 10-32 RH Male Threads 10-32 LH Male Threads 1.402 Overall Length Turnbuckle Style Jack Screws
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$13.86 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread length | 0.563 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $13.86 |
| 2+ | $8.65 |
| 3+ | $7.82 |
| 4+ | $6.80 |
| 5+ | $6.55 |
| 10+ | $4.70 |
| 25+ | $4.03 |
| 50+ | $3.03 |
| 100+ | $2.68 |
| 250+ | $2.42 |
| 500+ | $2.11 |
| 1,000+ | $1.81 |

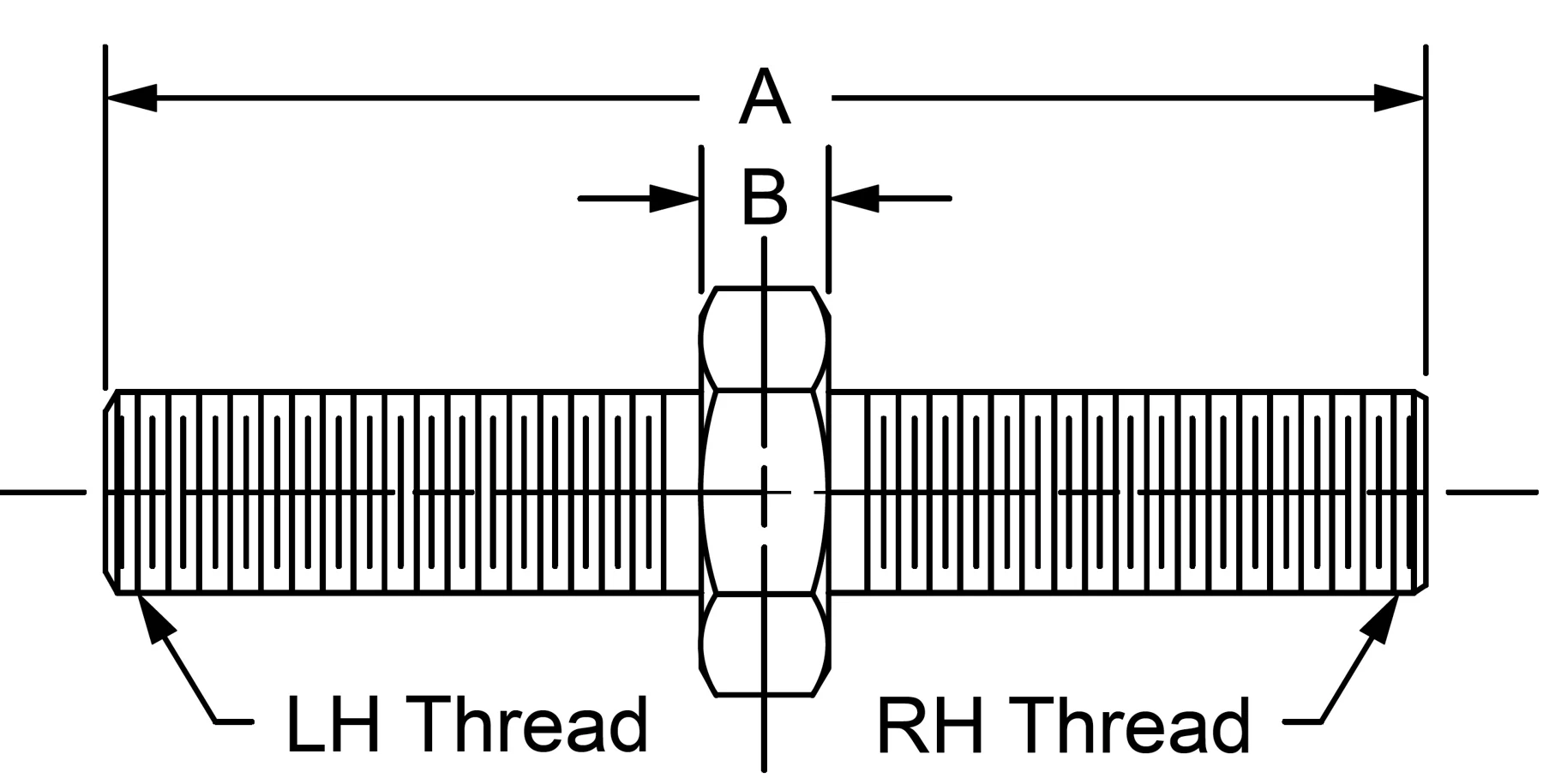

Drawing dimensions
| Threads LH/RH | 10-32 |
|---|---|
| Thread Length | 0.563 |
| Hex Size | 5/16 |
| A | 1.402 |
| B | 0.156 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Jackscrews provide LH RH thread turnbuckle adjustment to short linkages.
Construction: low carbon steel, plated zinc yellow.
