MCPThreaded Adaptors · Bulk
JSM-5
JSM-5, Threaded Adaptors, Bulk M5 x 0.80 RH Male Threads M5 x 0.80 LH Male Threads 37 mm Overall Length Turnbuckle Style Jack Screws
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.60 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread length | 15 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.60 |
| 2+ | $6.10 |
| 3+ | $5.21 |
| 4+ | $4.79 |
| 5+ | $3.46 |
| 10+ | $2.72 |
| 25+ | $1.88 |
| 50+ | $1.63 |
| 100+ | $1.22 |
| 250+ | $1.07 |
| 500+ | $1.00 |
| 1,000+ | $0.85 |

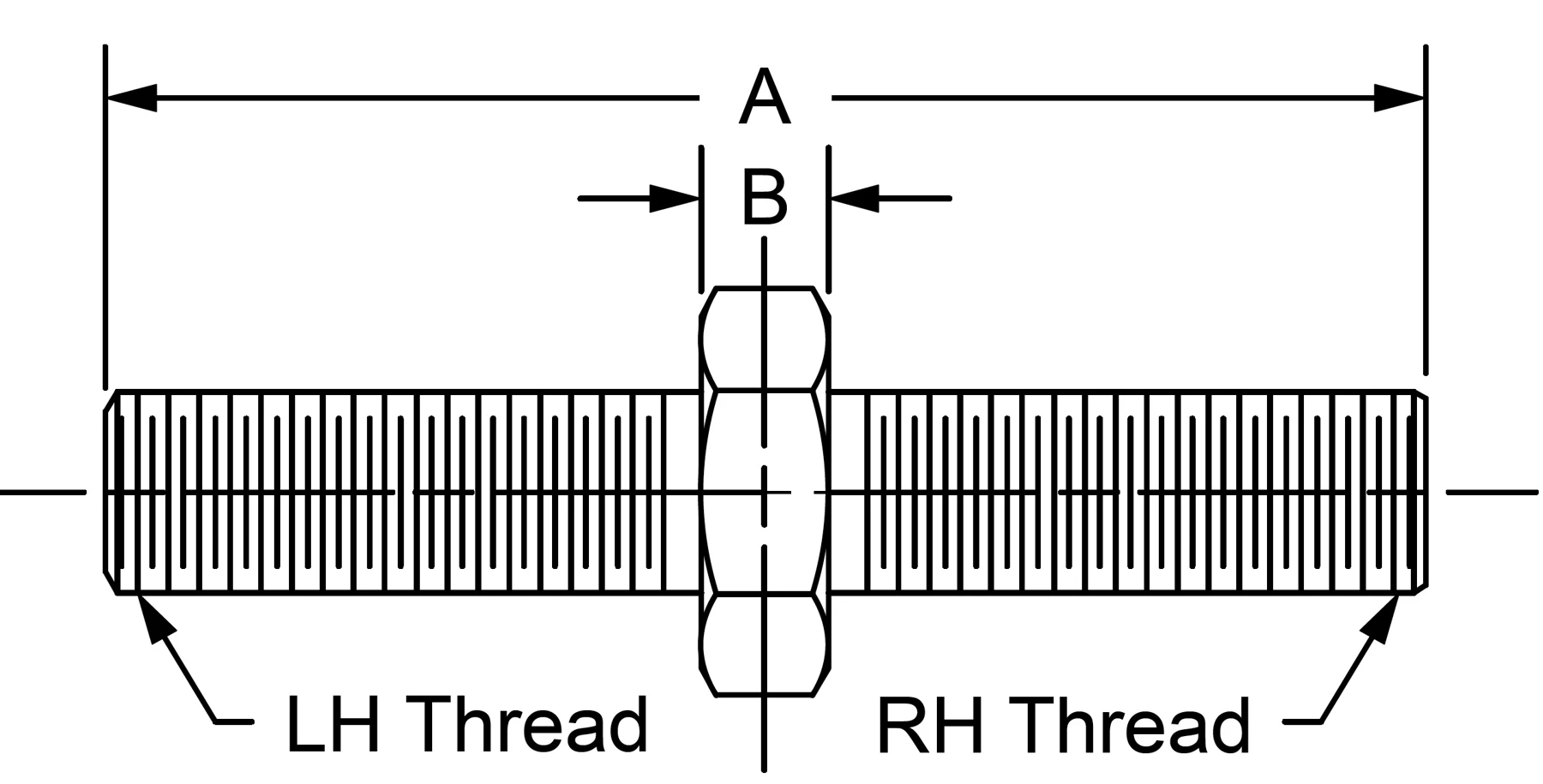

Drawing dimensions
| Threads LH/RH | M5 x 0.80 |
|---|---|
| Thread Length | 15 |
| Hex Size | 8 |
| A | 37 |
| B | 4 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Jackscrews provide LH RH thread turnbuckle adjustment to short linkages.
Construction: low carbon steel, plated zinc yellow.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
