MCPBall Joints · Female
JWSBL-M10
JWSBL-M10, Ball Joints, Female M10 x 1.25 LH Housing M10 x 1.25 RH Stud Tapered Stud with Grease Zerk and Boot

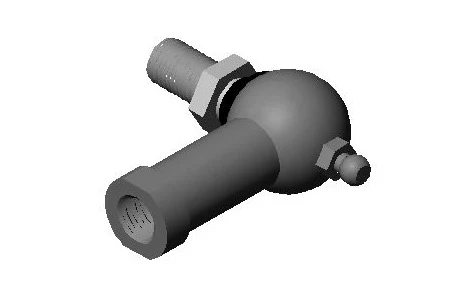

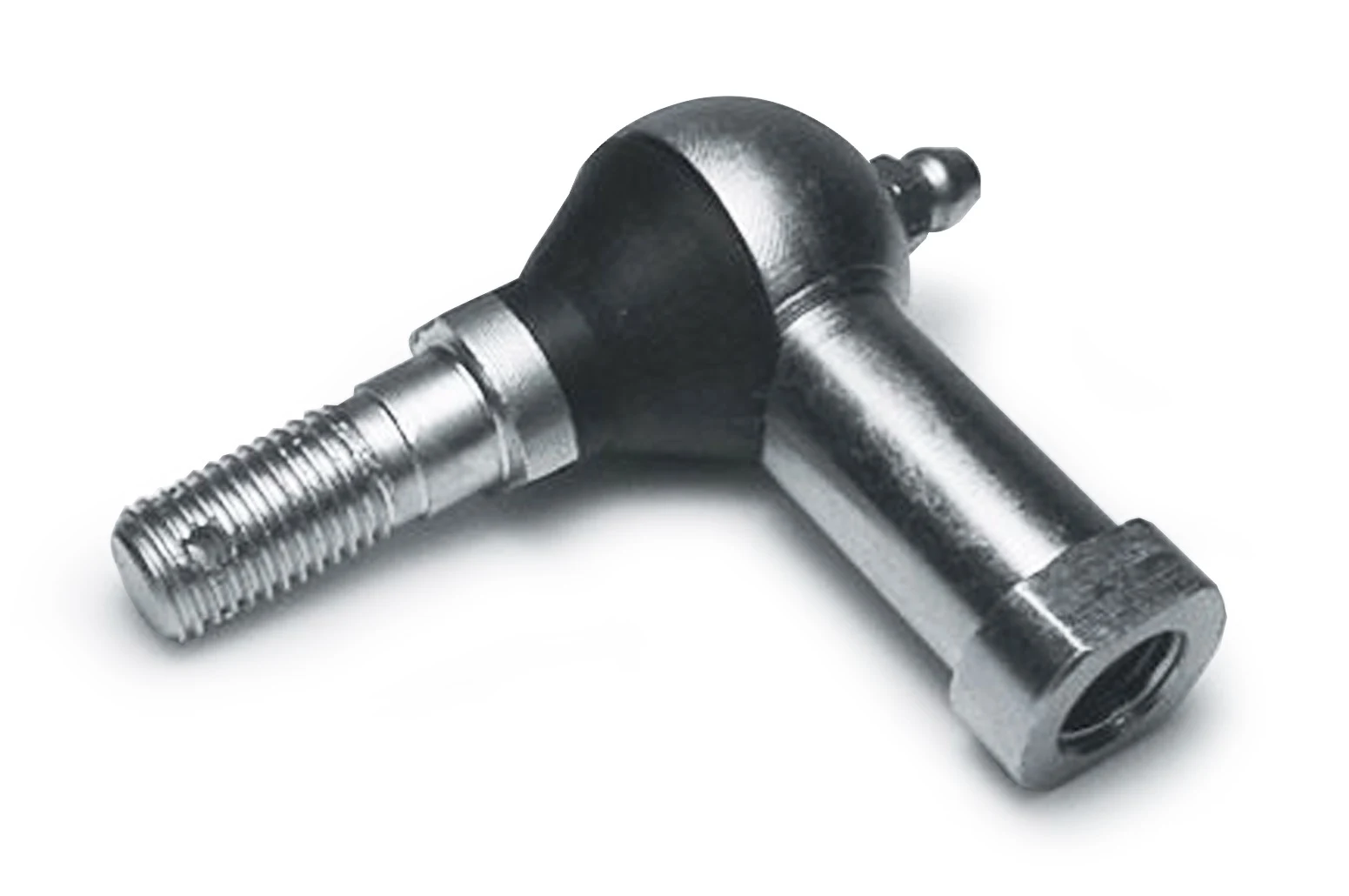

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.02 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | M10 x 1.25 LH |
|---|---|
| Stud thread | M10 x 1.25 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.02 |
| 2+ | $2.52 |
| 3+ | $1.69 |
| 4+ | $1.27 |
| 5+ | $1.02 |
| 10+ | $0.52 |
| 25+ | $0.22 |
| 50+ | $0.12 |
| 100+ | $0.07 |

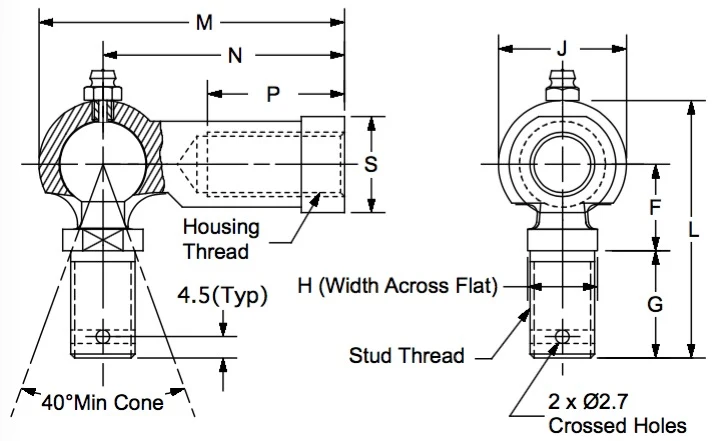

Drawing dimensions
| Housing Threads | M10 x 1.25 LH |
|---|---|
| Stud Threads | M10 x 1.25 RH |
| F | 21.0 |
| G | 25.0 |
| H | 12.6 |
| J | 25.5 |
| L | 54.5 |
| M | 54.0 |
| J | 42.0 |
| P | 24.0 |
| S | 14.5 |
Lettered dimensions refer to the drawing for this part.
Product information
Finish: Plated Zinc Yellow
Bearing Race: Filled with high wear lubricant.
Special Feature: Zerk allows for lubrication of ball socket.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
