Knee Brace

Knee Brace, Architectural, Truss Plates Knee Brace 0.250 Thick Steel Black Powder Coated

Product image
Knee Brace product image
Dimension drawing 1
Knee Brace dimension drawing 1
Additional photos
Additional product photo
Knee Brace additional product photo

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$238.13 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$238.13
2+$148.25
3+$138.99
4+$129.72
5+$127.03
10+$116.42
25+$104.17
50+$98.30
100+$96.94
250+$95.59

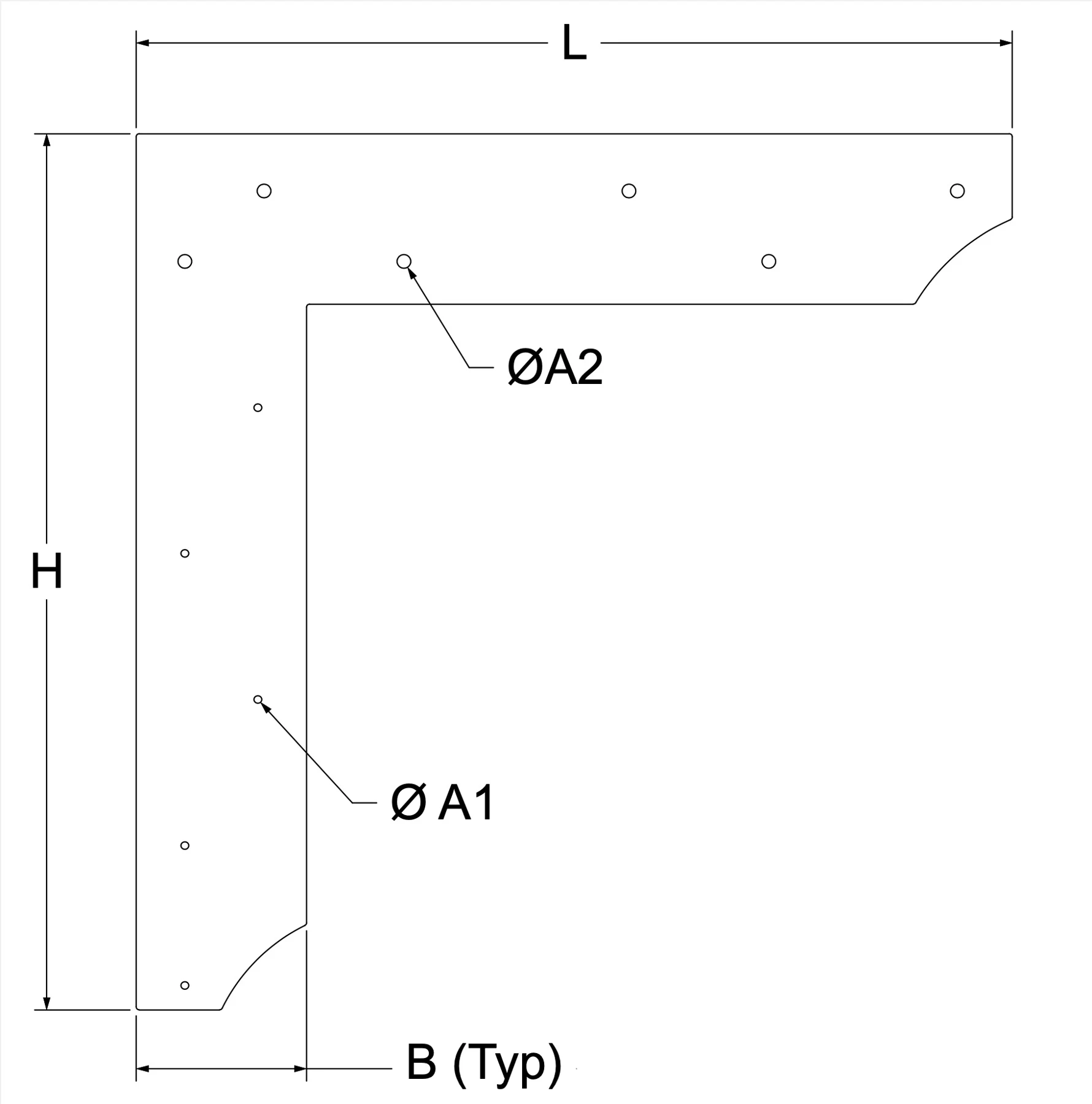

Drawing dimensions

A1 Ø0.313
A2 Ø0.563
B7
H36
L36
Powder PaintFlat Black

Lettered dimensions refer to the drawing for this part.

Product information

Material: 0.250 inch thick 1018 steel Made in the USA Powder Coated: flat Black Important Ordering Information: Architectural Truss Plates... Stock Status & Lead Times: While our website provides real-time inventory updates, high daily order volumes can occasionally deplete stock before the site refreshes. • Standard Lead Times: If an item is not currently on the shelf, manufacturing typically takes 3 to 5 weeks. • Verification: To confirm immediate availability or get a precise timeline, please contact us at [email protected] before placing your order. Finish & Shipping Expectations: Our plates are finished with a high-quality powder coating. However, due to the weight and nature of industrial freight, minor cosmetic abrasions can occur during transit. • The "5-Foot Rule": Our quality standard follows the industry guideline: if a cosmetic imperfection is not visible from a distance of five feet, it is considered acceptable. • Highly Aesthetic Projects: If your project requires a highly cosmetic finish, we recommend not ordering through the automated website. Instead, email us for a custom quote so we can discuss specialized crating or your preferred carrier. Cancellations & Returns: Because most truss plates are fabricated or finished to order, we maintain a strict production schedule. • 24-Hour Window: Cancellations are only permitted within 24 hours of order placement. • No Returns: We do not accept returns on truss plates. Please double-check all dimensions and engineering specifications for your project before finalizing your purchase. Large Project Pricing (Orders Over $1,000): For orders exceeding $1,000, we recommend requesting a formal quote via [email protected]. Why? A custom quote allows us to bypass website freight calculators, often resulting in more accurate shipping rates and giving you the flexibility to designate your own freight carrier. Custom Projects/Designs: We laser cut, bend, powder paint in-house. If you have a steel or aluminum plate project that you need quoted, feel free to email your project to us at [email protected].
