MCPKnobs, Shift · for Levers and Cables
KSTS-187

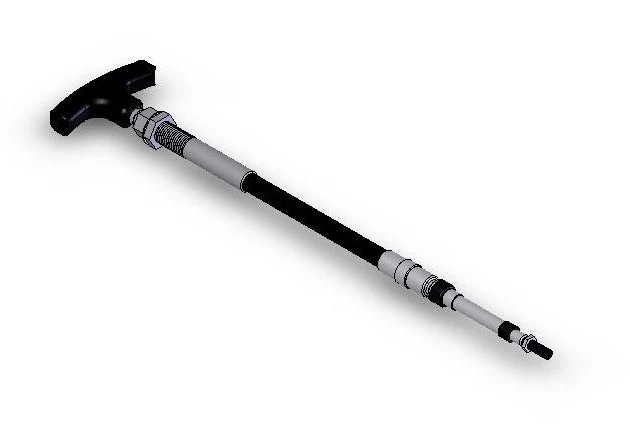

KSTS-187, Knobs, Shift, for Levers and Cables 10-32 RH T Round Knob for Turn to Lock Push Pull Cables

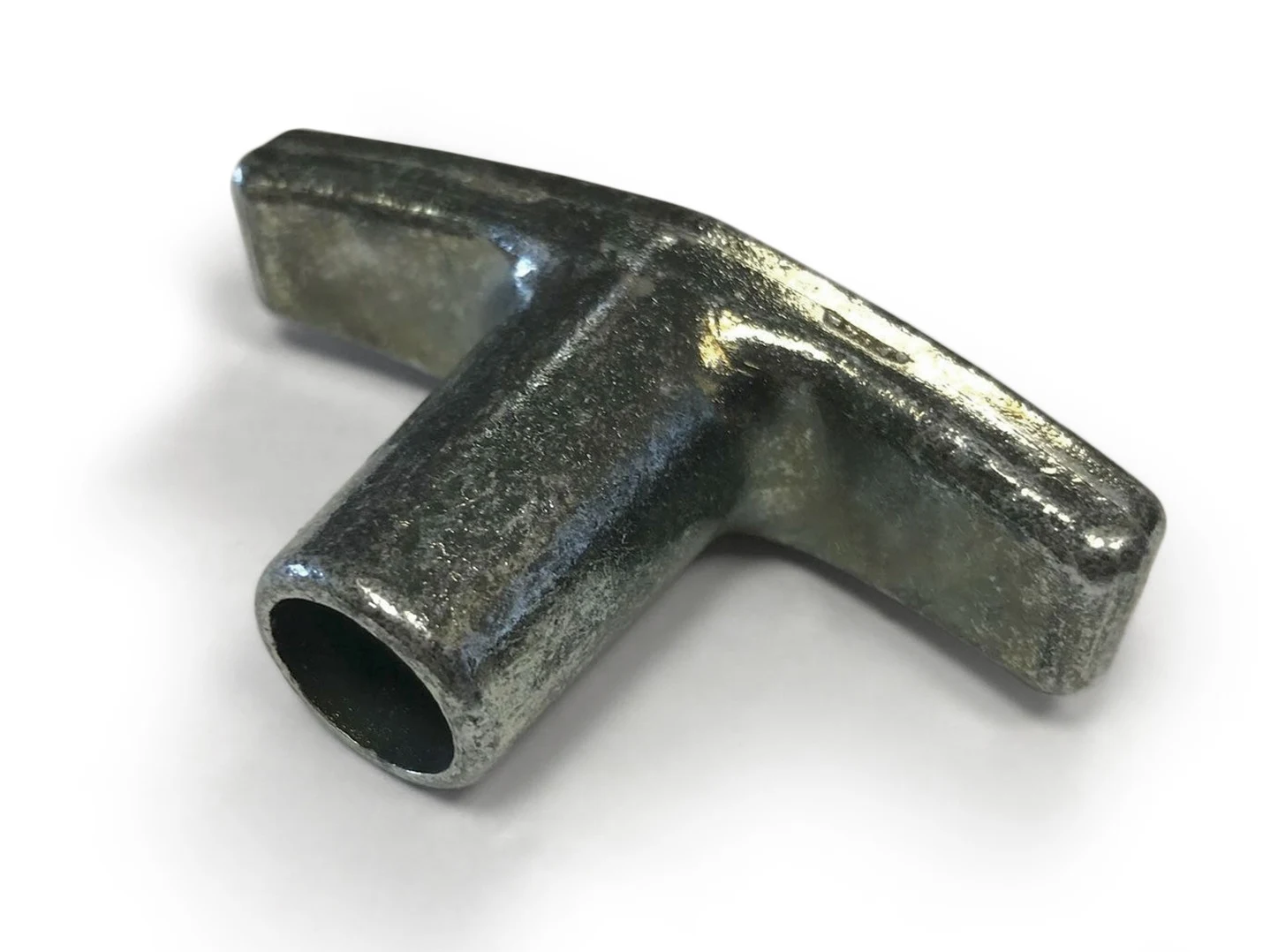

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$18.88 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | No Threads |
|---|---|
| Color | Black |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $18.88 |
| 2+ | $12.15 |
| 3+ | $10.37 |
| 4+ | $9.96 |
| 5+ | $8.53 |
| 10+ | $7.09 |
| 25+ | $4.79 |
| 50+ | $4.22 |
| 100+ | $4.17 |
| 250+ | $3.32 |
| 500+ | $2.84 |
| 1,000+ | $2.83 |
Drawing dimensions
| Threads | No Threads |
|---|---|
| A | 2.50 |
| B | 0.50 |
| C | 1.37 |
| D | 0.322 |
| E | 0.23 |
| F | 0.378 |
| G | 0.13 |
| J | 0.75 |
| Color | Black |
Lettered dimensions refer to the drawing for this part.
Product information
Material: plastic
Note: this part is designed for use by cable assemblers skilled in the art of cutting and crimping custom cables.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
