Threaded Adaptors · Bulk

LBAX-10

LBAX-10, Threaded Adaptors, Bulk 5/8-18 LH Male Threads 5/8-18 RH Female Threads 3.875 Overall Length Ladder Bar Style Chrome Moly

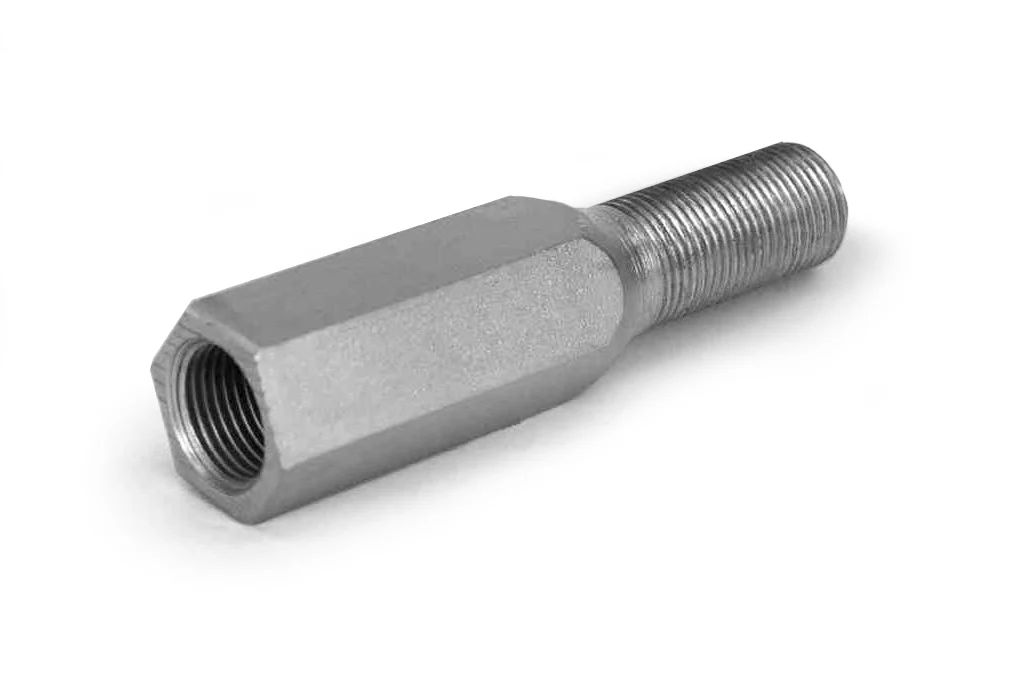

Product image
LBAX-10 product image

3D CAD preview

Drag to rotate · scroll or pinch to zoom · right-drag or two fingers to pan.

CAD models are for reference only. We do not guarantee the accuracy of CAD models; the part drawing is the official source of dimensional data.

$17.65 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Female thread5/8-18 RH
Male thread5/8-18 LH
MaterialChrome Moly
Finish / platingChrome Plated

Values without units follow the drawing.

Drawing & dimensions

LBAX-10 dimension drawing
FinishChrome Plated
MaterialChrome Moly
Male Threads5/8-18 LH
Female Threads5/8-18 RH
A3.875
B1.375
C1.935
D1.475
F.875
Item envelope L × W × H (in)3.875 × 0.875 × 0.875
Unit weight (lb)0.3695

Lettered dimensions refer to the drawing for this part.

Additional photos

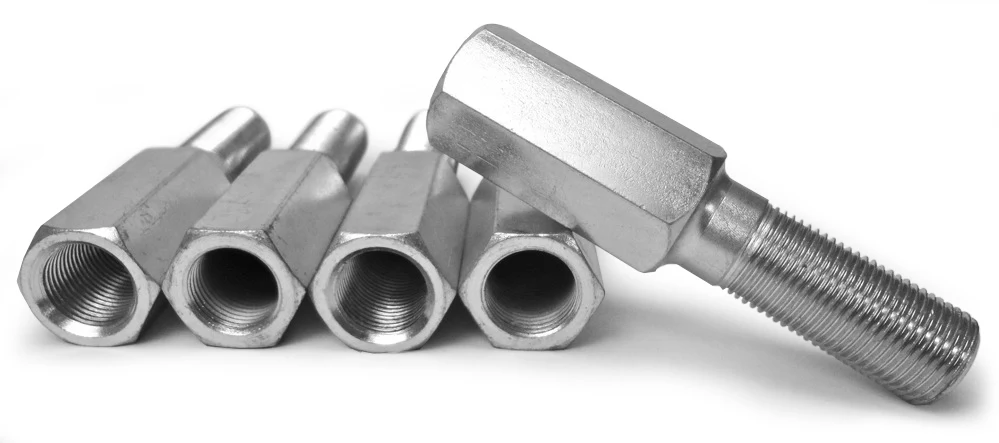

Additional product photo
LBAX-10 additional product photo
Additional product photo
LBAX-10 additional product photo

CAD & file downloads

CAD models are for reference only. We do not guarantee the accuracy of CAD models; the part drawing is the official source of dimensional data.

Public previews are available above. A free account is required to download original files; sign in once and every file downloads in one click.You're signed in. Files download straight to your computer.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$17.65
2+$13.92
4+$11.13
8+$9.27
16+$8.19
25+$6.23
50+$5.51
75+$5.48
150+$4.98
200+$4.35

Product information

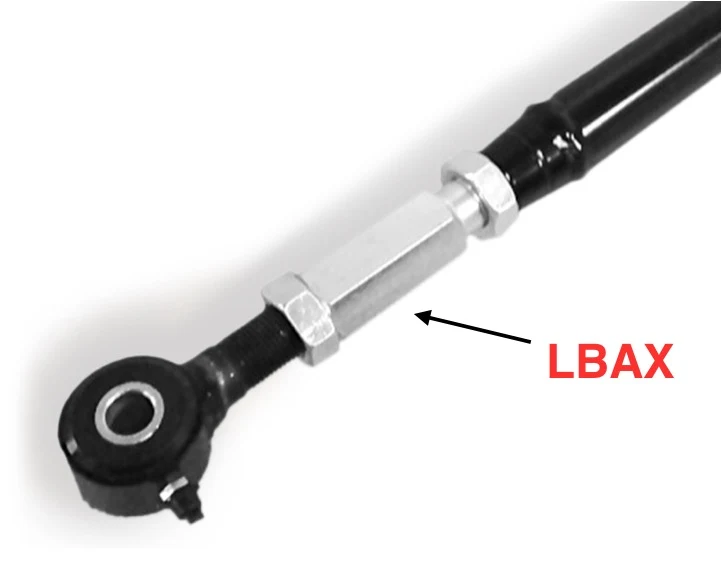

Application: Ladder Bar Adjusters provide LH RH thread turnbuckle adjustment to linkages and, in the case of the LBAX chrome moly series, the ability to adjust panhard bars, track bars and control arms after installation in automotive aftermarket accessory applications. Construction: chrome moly steel, chrome plated

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
