MCPBall Joints · Male
LDS250
LDS250, Ball Joints, Male 1/4-28 RH Housing 1/4-28 RH Stud Quick Disconnect Chrome Plated
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.57 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 1/4-28 RH |
|---|---|
| Stud thread | 1/4-28 RH |
| Finish / plating | Chrome |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.57 |
| 2+ | $4.07 |
| 3+ | $3.24 |
| 4+ | $2.82 |
| 5+ | $2.57 |
| 10+ | $1.57 |
| 25+ | $1.17 |
| 50+ | $0.94 |
| 100+ | $0.72 |
| 200+ | $0.54 |
| 300+ | $0.53 |
| 400+ | $0.48 |
| 500+ | $0.47 |

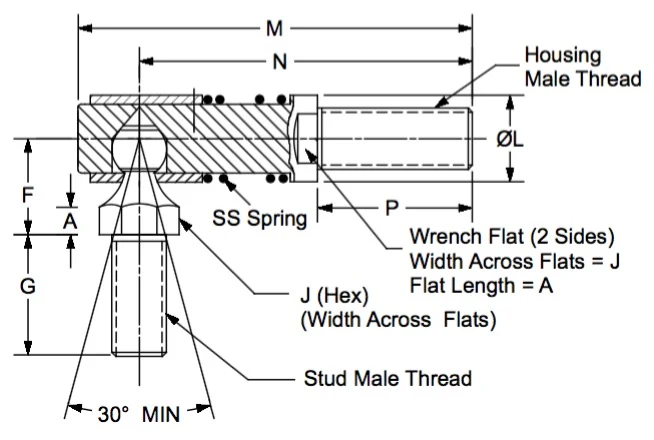

Drawing dimensions
| Plating | Chrome |
|---|---|
| Housing Thread | 1/4-28 RH |
| Stud Thread | 1/4-28 RH |
| A | 0.125 |
| B | 0.375 |
| C | 0.060 |
| F | 0.469 |
| G | 0.562 |
| J | 0.375 |
| K | 0.208 |
| L | 0.562 |
| M | 1.848 |
| N | 1.567 |
| P | 0.562 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: zinc plated steel
Feature: spring loaded outer housing can be temporarily slipped back to allow removal of the ball stud.
Video: https://www.youtube.com/watch?v=mnn-AjcFuKw
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More ball joints
Compare specifications and drawings to select the right part.
