MCPClevis and Yoke Ends · Female
MCK10L

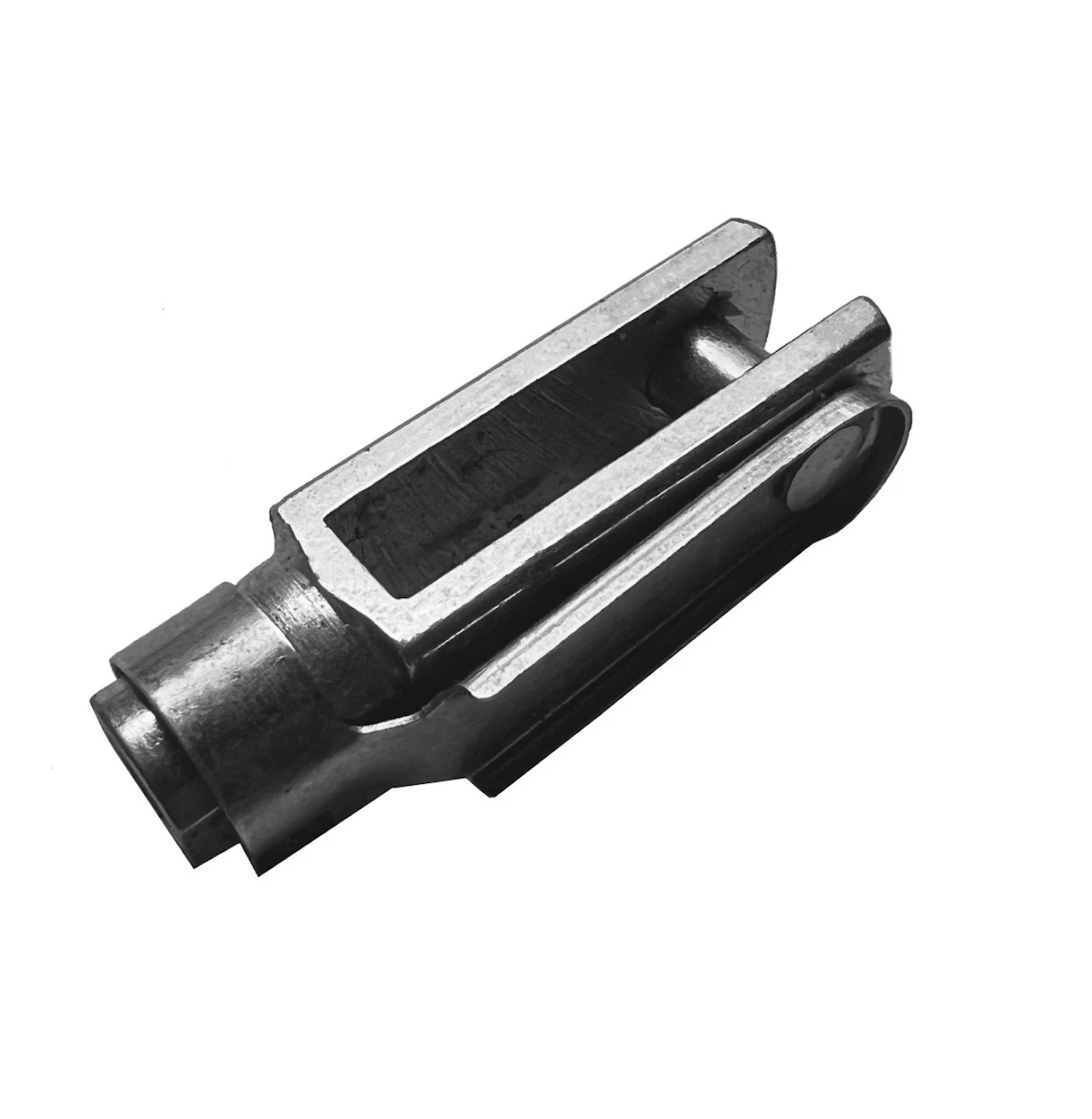

MCK10L, Clevis and Yoke Ends, Female M10 x 1.50 RH 10mm Pin Holes 10 x 40 Housing Zinc Clear Hex Free Includes Clevis Spring Pin
3D CAD preview
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$12.10 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M10 x 1.5 RH |
|---|---|
| Finish / plating | ZCHF |
| Spring pin included | Yes |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $12.10 |
| 2+ | $9.48 |
| 3+ | $6.52 |
| 4+ | $6.11 |
| 5+ | $5.39 |
| 10+ | $4.30 |
| 25+ | $3.23 |
| 50+ | $2.42 |
| 100+ | $2.14 |
| 250+ | $1.99 |
Drawing dimensions
| Threads | M10 x 1.50 RH |
|---|---|
| A | 60 |
| B | 18 |
| D | 40 |
| E | 10 |
| F | 20 |
| G | 10 |
| H | 72 |
| I | 20 |
| Finish | ZCHF |
| Spring Pin Included | Yes |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: per DIN 71752, low carbon steel, zinc plated
Volume Pricing: Contact us for quotations and lead times on quantities of over 100 pieces.
Custom and Standard Linkages and Push-Pull Cables: We also manufacture connecting linkage rods and push-pull cables and offer both standard and custom designs.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
