MCPClevis and Yoke Ends · Female
MCK4L
MCK4L, Clevis and Yoke Ends, Female M4 x 0.70 RH 4mm Pin Holes 4 x 16 Housing Zinc Clear Hex Free Includes Clevis Spring Pin

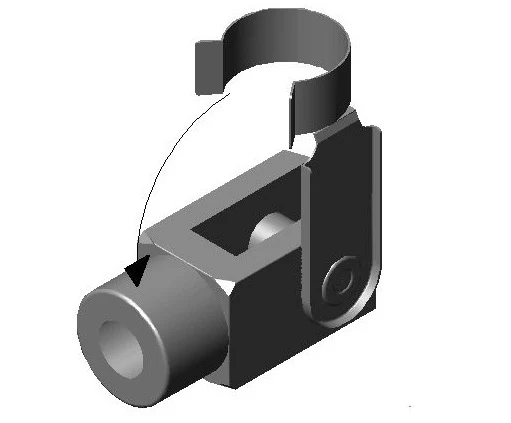

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$22.75 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M4 x 0.7 RH |
|---|---|
| Finish / plating | ZCHF |
| Spring pin included | Yes |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $22.75 |
| 2+ | $18.52 |
| 3+ | $15.53 |
| 4+ | $13.37 |
| 5+ | $13.12 |
| 10+ | $11.54 |
| 25+ | $7.78 |
| 50+ | $7.68 |
| 100+ | $6.98 |
Drawing dimensions
| Threads | M4 x 0.70 RH |
|---|---|
| A | 24 |
| B | 8 |
| D | 16 |
| E | 4 |
| F | 8 |
| G | 4 |
| H | 29 |
| I | 8 |
| Finish | ZCHF |
| Spring Pin Included | Yes |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: per DIN 71752, low carbon steel, zinc plated
Volume Pricing: Contact us for quotations and lead times on quantities of over 100 pieces.
Custom and Standard Linkages and Push-Pull Cables: We also manufacture connecting linkage rods and push-pull cables and offer both standard and custom designs.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
