MCPBearings, Spherical Rod End · Female
MCR-3

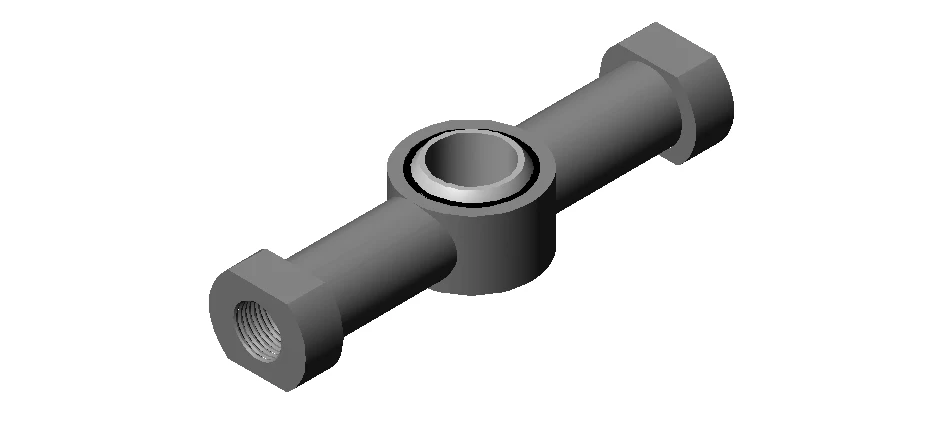

MCR-3, Bearings, Spherical Rod End, Female 10-32 RH Steel Housing, Bronze Race Output End has Left Hand Threads

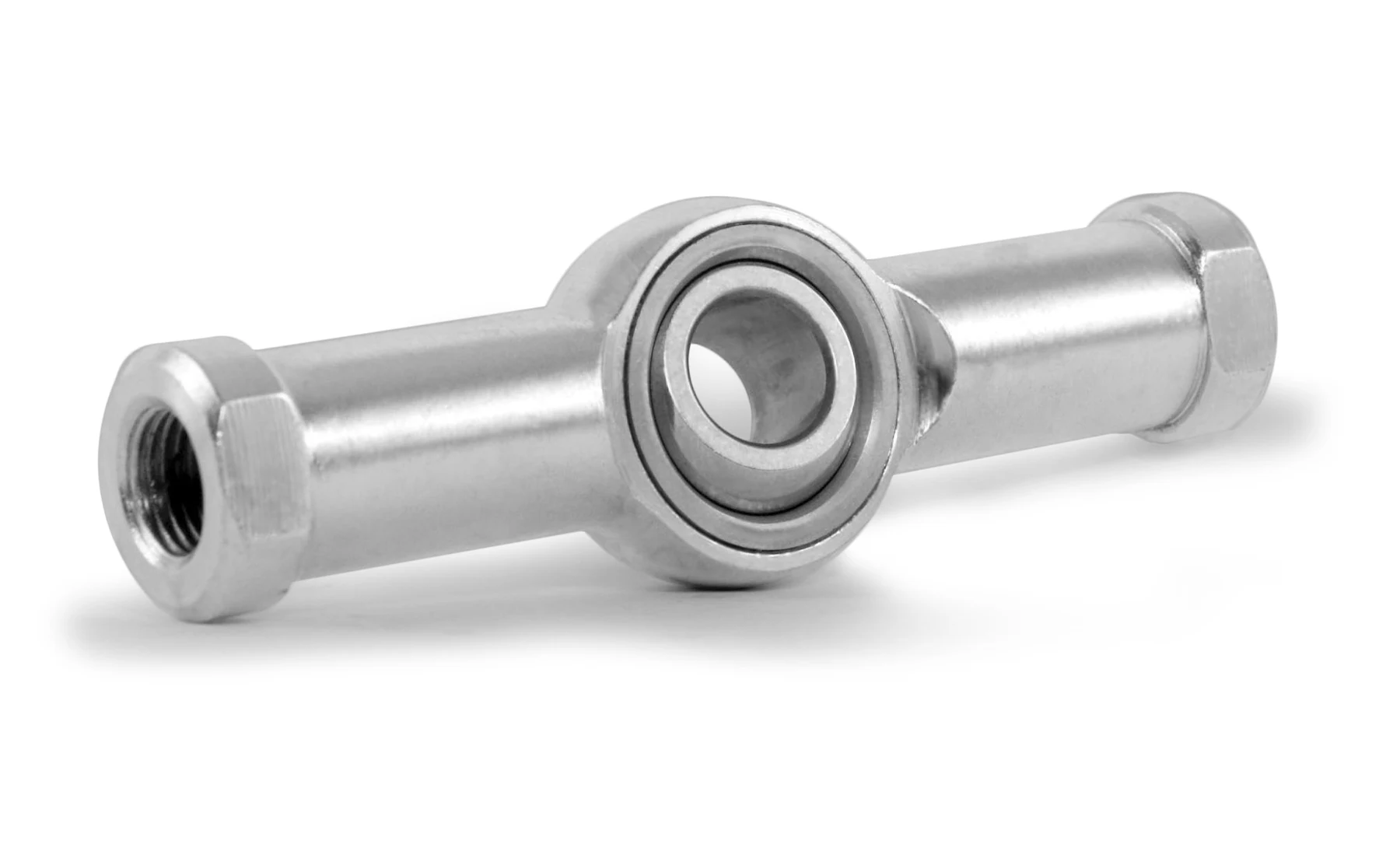

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$27.20 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 10-32 RH |
|---|---|
| Housing construction | Steel |
| Race material | Bronze |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $27.20 |
| 2+ | $21.70 |
| 3+ | $18.47 |
| 4+ | $18.05 |
| 5+ | $16.30 |
| 10+ | $12.20 |
| 25+ | $10.70 |
| 50+ | $10.00 |
| 100+ | $8.45 |
| 250+ | $7.22 |
| 500+ | $7.09 |
| 1,000+ | $7.09 |

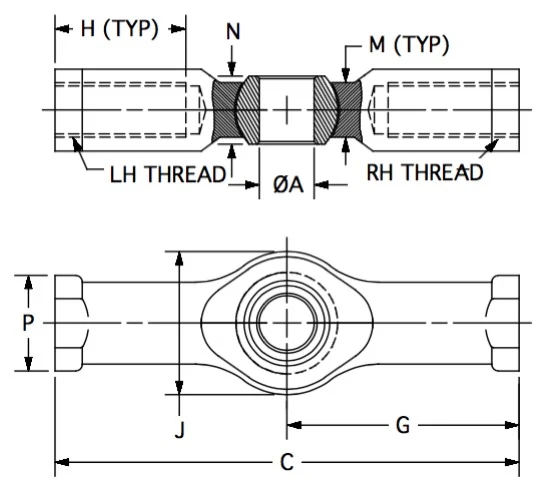

Drawing dimensions
| Threads | 10-32 RH |
|---|---|
| A | 0.190 |
| C | 2.124 |
| G | 1.062 |
| H | 0.562 |
| J | 0.625 |
| M | 0.250 |
| N | 0.312 |
| P | 0.406 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: bronze
Ball: heat treated, hard chrome plated bearing steel
Finish: zinc clear

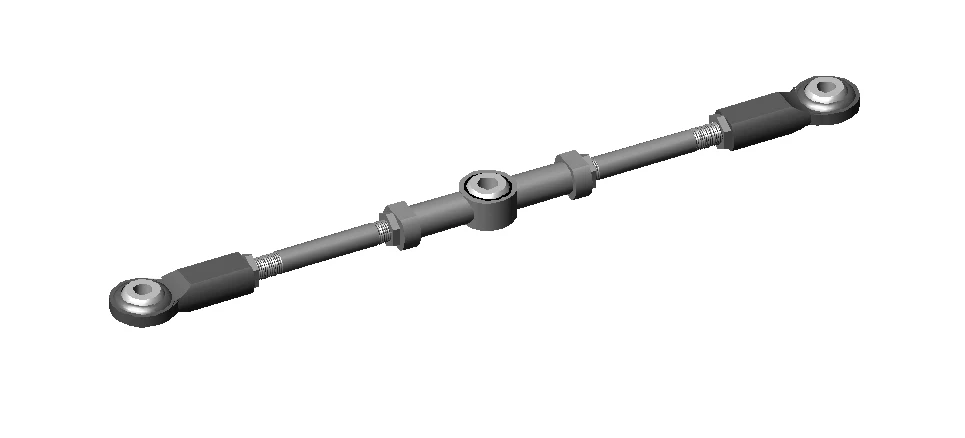

Special Feature: Dual housing/body. Useful in hot rod dual carburetor applications. Common names for this are turnbuckle spherical rod end heim joints, tri-power carburetor conversion linkage kit, progressive linkage rod ends, and dual carb and multi carburetor spherical rod ends.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
