MCPBearings, Spherical Rod End · Female
MCR-5

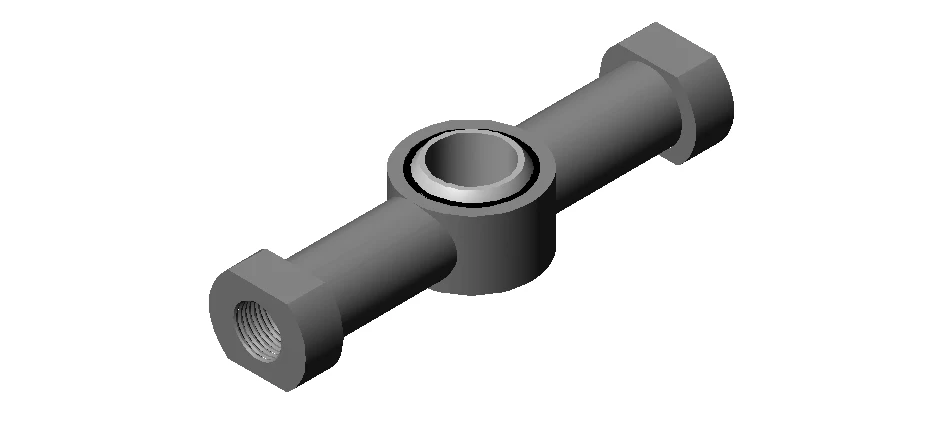

MCR-5, Bearings, Spherical Rod End, Female 5/16-24 RH Steel Housing, Bronze Race Output End has Left Hand Threads
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$25.47 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 5/16-24 RH |
|---|---|
| Housing construction | Steel |
| Race material | Bronze |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $25.47 |
| 2+ | $20.21 |
| 3+ | $17.16 |
| 4+ | $16.75 |
| 5+ | $15.11 |
| 10+ | $11.29 |
| 25+ | $9.89 |
| 50+ | $9.24 |
| 100+ | $7.80 |

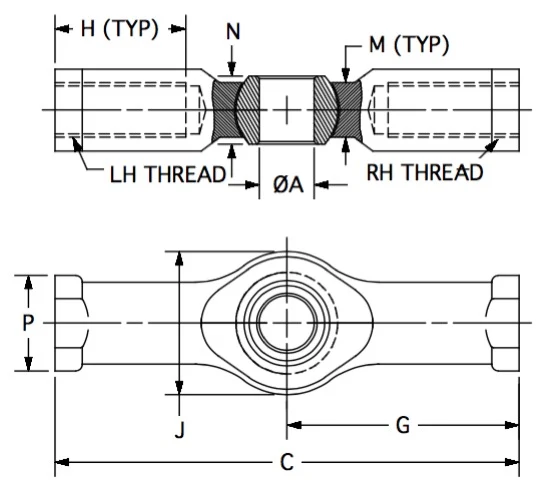

Drawing dimensions
| Threads | 5/16-24 RH |
|---|---|
| A | 0.3125 |
| C | 2.750 |
| G | 1.375 |
| H | 0.750 |
| J | 0.875 |
| M | 0.344 |
| N | 0.437 |
| P | 0.500 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: bronze
Ball: heat treated, hard chrome plated bearing steel
Finish: zinc clear

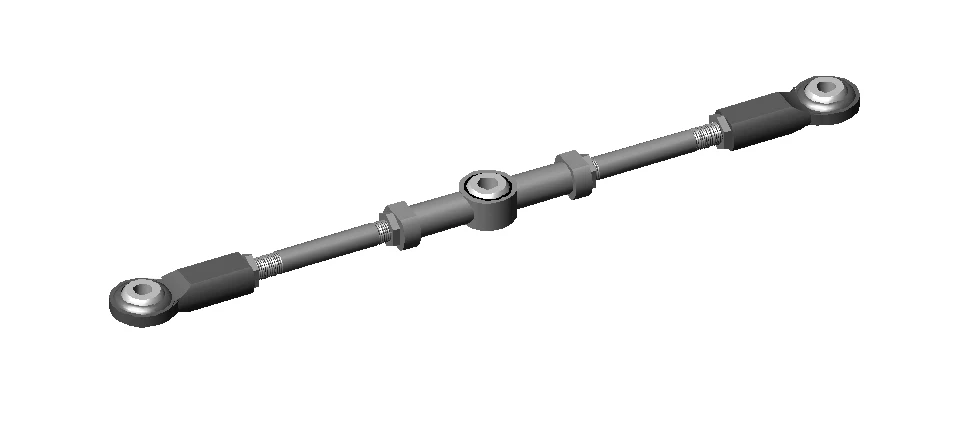

Special Feature: Dual housing/body. Useful in hot rod dual carburetor applications. Common names for this are turnbuckle spherical rod end heim joints, tri-power carburetor conversion linkage kit, progressive linkage rod ends, and dual carb and multi carburetor spherical rod ends.
