MCPRod End Spacers · Plated Steel
MCW-12-1

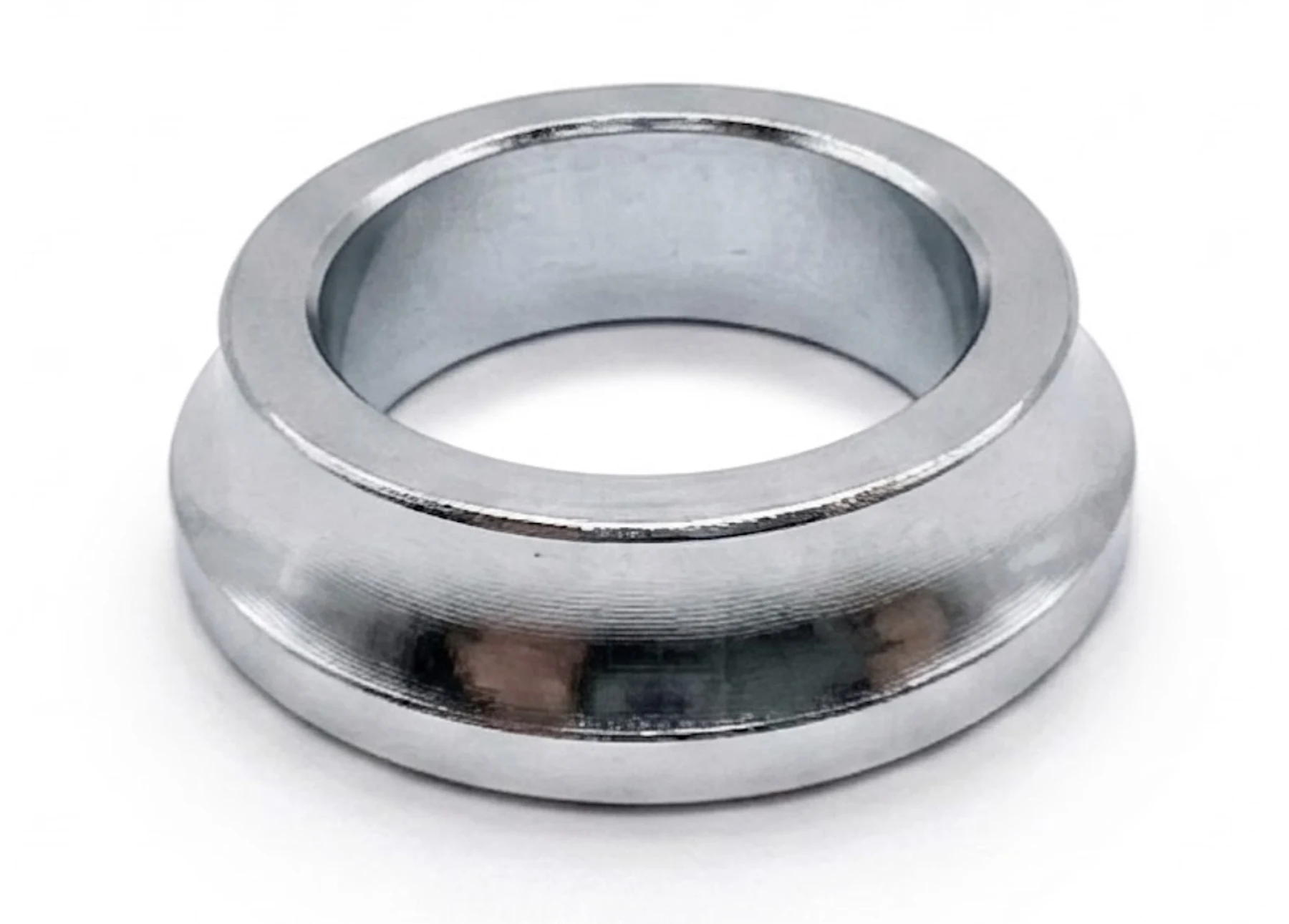

MCW-12-1, Rod End Spacers, Plated Steel 3/4 Bore 0.302 Thick Washer Style
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$14.32 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 3/4 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $14.32 |
| 2+ | $8.98 |
| 3+ | $8.15 |
| 4+ | $7.10 |
| 5+ | $6.85 |
| 10+ | $4.92 |
| 25+ | $4.23 |
| 50+ | $3.18 |
| 100+ | $2.82 |
| 200+ | $2.64 |
| 400+ | $2.23 |
| 600+ | $2.22 |
| 1,200+ | $1.91 |
Drawing dimensions
| Nominal Size | 3/4 |
|---|---|
| A | 1.141 |
| B | 0.751 |
| C | 0.978 |
| D | 0.302 |
Lettered dimensions refer to the drawing for this part.
Product information
Safety Washers are designed for use in single shear rod end applications. They reduce the chance of a spherical rod end failure and provide an offset from the face of a spherical rod end.
Finish: plated zinc clear
