MCPRod End Spacers · Plated Steel
MCW-14

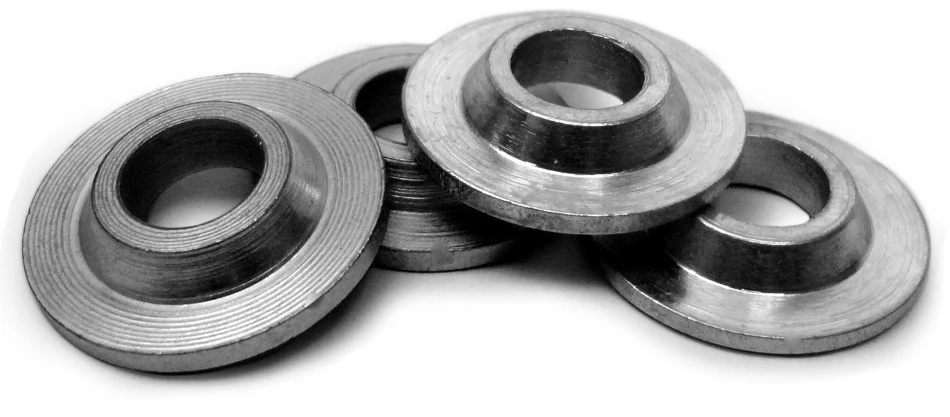

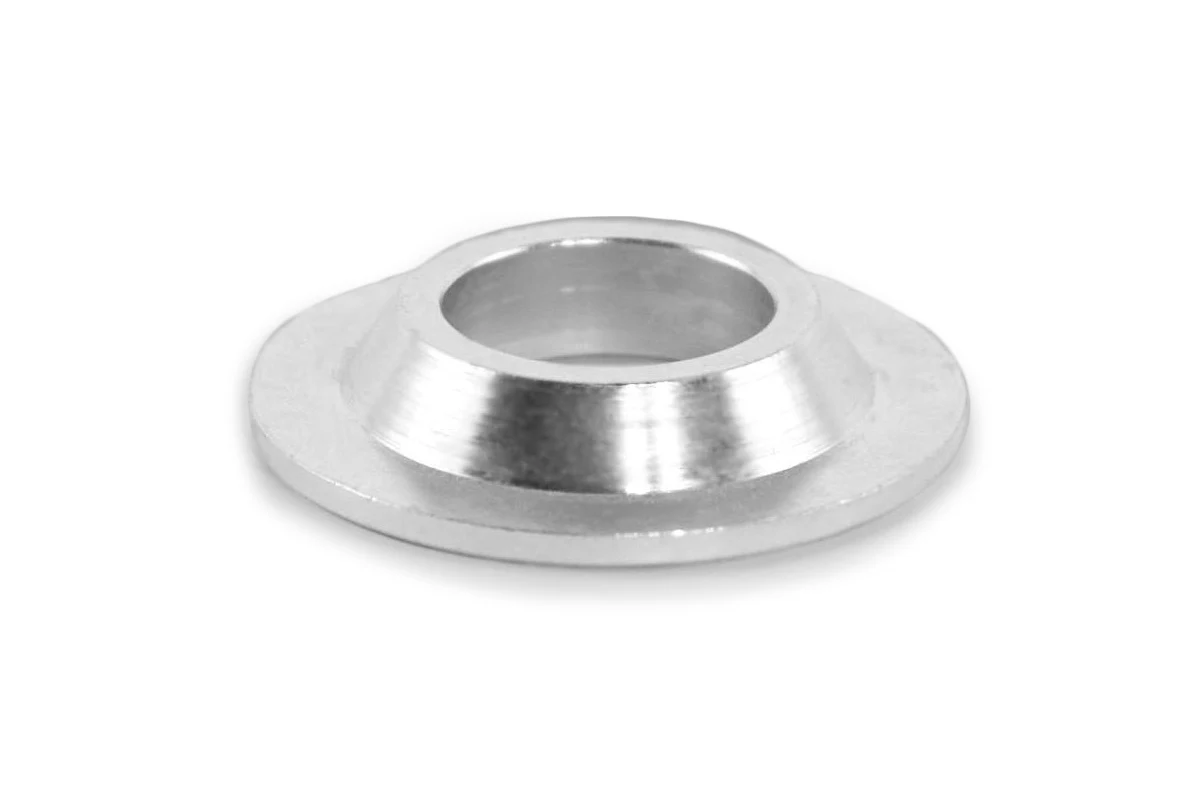

MCW-14, Rod End Spacers, Plated Steel 7/8 Bore 0.3125 Thick Washer Style
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.07 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 7/8 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.07 |
| 2+ | $5.57 |
| 3+ | $4.69 |
| 4+ | $4.27 |
| 5+ | $3.10 |
| 10+ | $2.39 |
| 20+ | $1.89 |
| 40+ | $1.56 |
| 80+ | $1.38 |
| 160+ | $1.04 |
| 320+ | $0.92 |
| 640+ | $0.85 |
| 960+ | $0.83 |

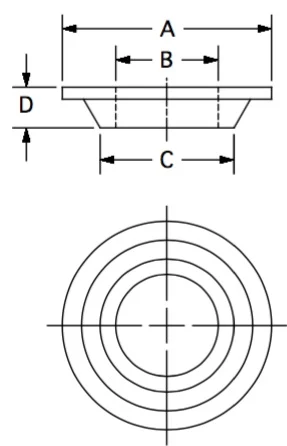

Drawing dimensions
| Nominal Size | 7/8 |
|---|---|
| A | 1.875 |
| B | 0.876 |
| C | 1.033 |
| D | 0.3125 |
Lettered dimensions refer to the drawing for this part.
Product information

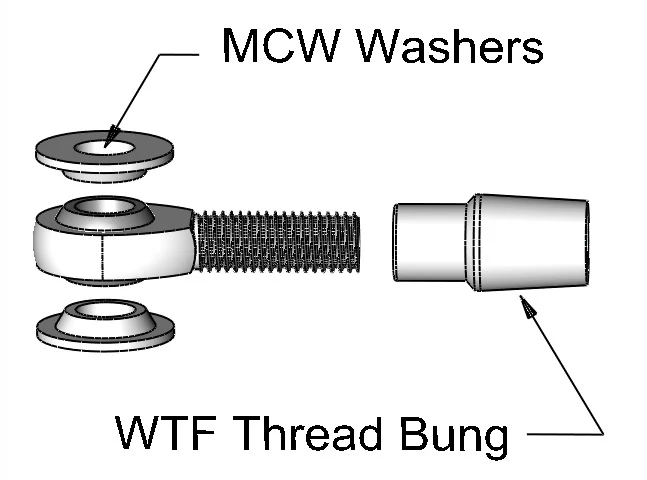

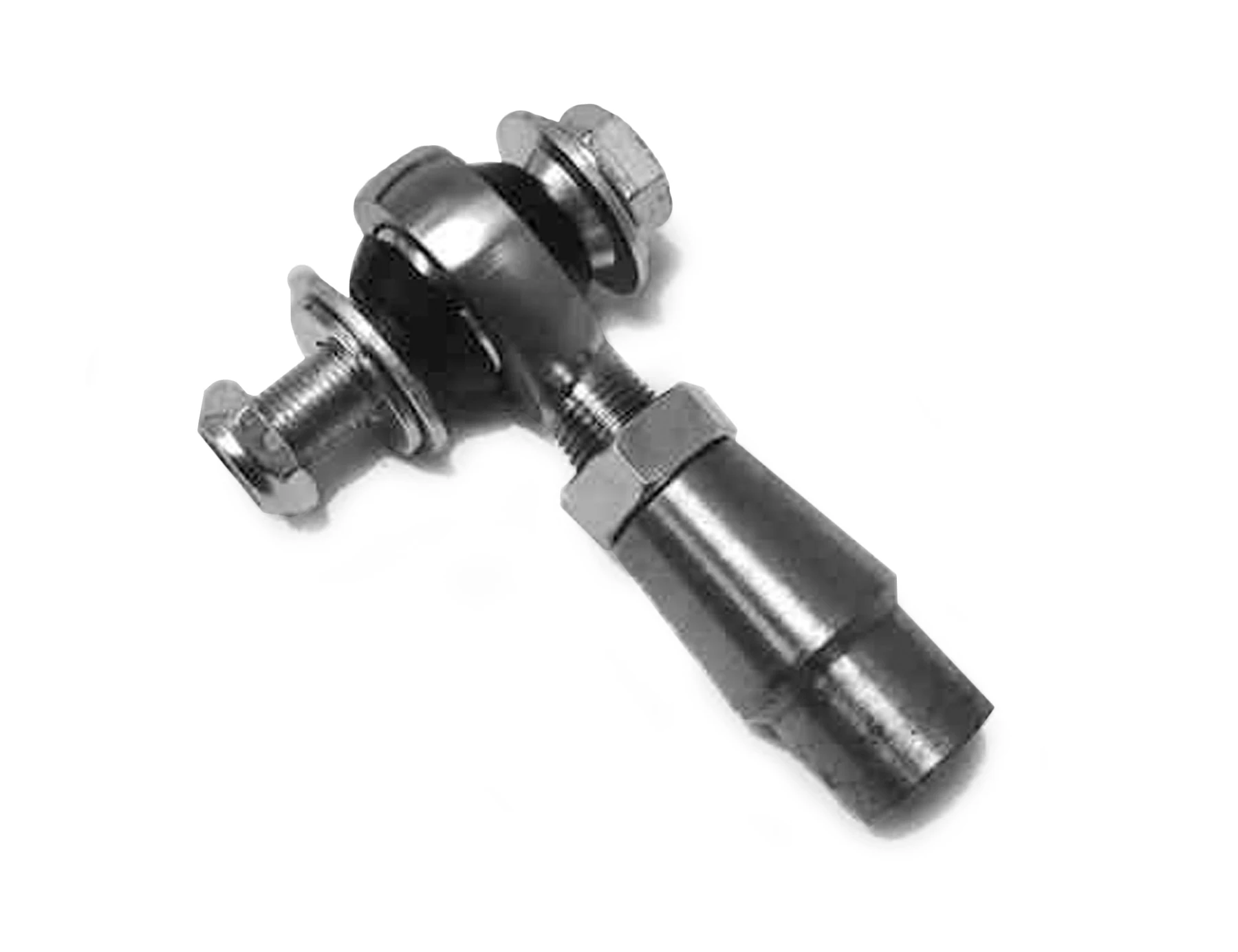

Safety Washers are designed for use in single shear rod end applications. They reduce the chance of a spherical rod end failure and provide an offset from the face of a spherical rod end.
Finish: plated zinc clear
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
