MDB-3-4, Ball Joints, Female 10-32 RH Housing 1/4-28 RH Stud Quick Disconnect, Light Duty

Product image
MDB-3-4 product image

3D CAD preview

Drag to rotate · scroll or pinch to zoom · right-drag or two fingers to pan.

CAD models are for reference only. We do not guarantee the accuracy of CAD models; the part drawing is the official source of dimensional data.

$10.34 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Housing thread10-32 RH
Stud thread1/4-28 RH

Values without units follow the drawing.

Drawing & dimensions

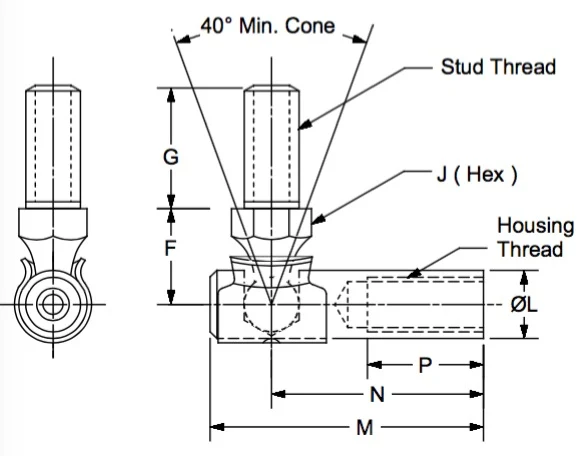

MDB-3-4 dimension drawing
Housing Threads10-32
Stud Threads1/4-28
B0.251
F0.438
G0.563
J0.3125
K0.137
L0.3125
M1.156
N0.875
P0.484
Item envelope L × W × H (in)1.156 × 1.001 × 0.3125
Unit weight (lb)0.0285

Lettered dimensions refer to the drawing for this part.

CAD & file downloads

CAD models are for reference only. We do not guarantee the accuracy of CAD models; the part drawing is the official source of dimensional data.

Public previews are available above. A free account is required to download original files; sign in once and every file downloads in one click.You're signed in. Files download straight to your computer.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$10.34
2+$7.75
3+$5.32
4+$4.90
5+$4.65
10+$3.79
25+$2.69
50+$2.37
75+$1.81
100+$1.79
250+$1.58
500+$1.43
1,000+$1.26

Product information

Application: Quick Disconnect Ball Joints are used in light-duty applications where the ball stud needs to be easily disconnected from the housing. This is accomplished simply by pulling the ball stud out of the housing (takes approximately 10 to 20 pounds of force to remove the ball stud). Quick Disconnect Ball Joints are typically assembled to push-pull cables or rod linkages. For heavier loads, consider the QI-series Ball Joints. Material: low carbon steel. Heat treated ball stud. Metric: metric versions are available in volume. Plating: plated zinc with a yellow dichromate finish. Specials: Special sizes and configurations are available in volume.
