MCPBearings, Spherical Rod End · Female
MEF-5Z-ZCHF
MEF-5Z-ZCHF, Bearings, Spherical Rod End, Female 5/16-24 RH Steel Housing, Hardened Race with Grease Zerk Zinc Clear Hex Free (ROHS)
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$17.11 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 5/16-24 RH |
|---|---|
| Housing construction | Steel |
| Race material | Hardened |
| Grease fitting | Yes |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $17.11 |
| 2+ | $10.91 |
| 3+ | $9.26 |
| 4+ | $8.84 |
| 5+ | $7.57 |
| 10+ | $6.25 |
| 50+ | $3.69 |
| 100+ | $3.64 |
| 200+ | $3.31 |
| 400+ | $2.89 |
| 600+ | $2.47 |
| 800+ | $2.47 |
| 1,000+ | $2.47 |

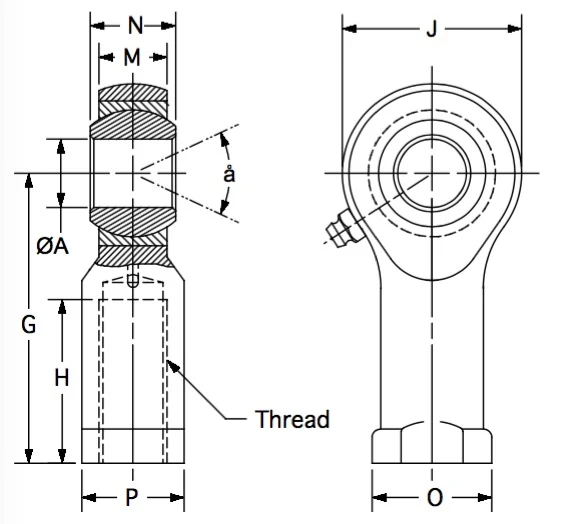

Drawing dimensions
| Threads | 5/16-24 RH |
|---|---|
| A | 7.938 |
| a° | 16 |
| G | 35.6 |
| H | 17.5 |
| J | 25.9 |
| M | 8.6 |
| N | 11.10 |
| O | 10 |
| P | 11.10 |
| Zerked? | Yes |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: Hardened Steel
Ball: heat treated, hard chrome plated bearing steel
Finish: zinc plated
Construction: per SAE J1120 Type A
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More bearings, spherical rod end
Compare specifications and drawings to select the right part.
