MCPBearings, Spherical Rod End · Male
MEM-5-Z

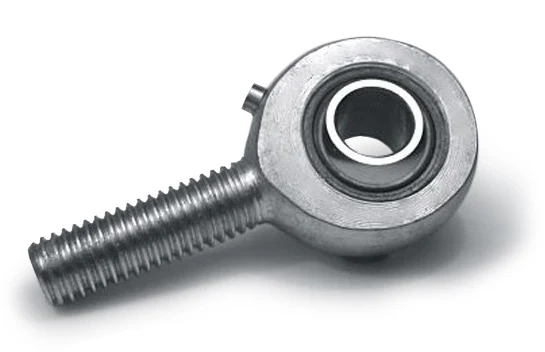

MEM-5-Z, Bearings, Spherical Rod End, Male 5/16-24 RH Steel Housing, Hardened Race 0.313 Bore
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$7.41 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 5/16-24 RH |
|---|---|
| Bore diameter | 0.313 |
| Housing construction | Steel |
| Race material | Hardened |
| Grease fitting | Yes |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $7.41 |
| 2+ | $4.91 |
| 3+ | $4.07 |
| 4+ | $3.62 |
| 5+ | $3.37 |
| 10+ | $2.15 |
| 25+ | $1.49 |
| 50+ | $1.23 |
| 100+ | $1.08 |
| 225+ | $0.81 |
| 450+ | $0.72 |
| 900+ | $0.65 |
| 1,800+ | $0.56 |
| 2,700+ | $0.48 |

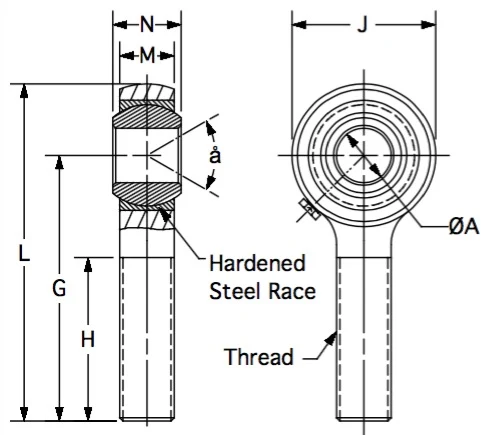

Drawing dimensions
| Threads | 5/16-24 RH |
|---|---|
| Grease Zerk | Yes |
| A | 0.313 |
| a° | 16 |
| G | 1.902 |
| H | 1.18 |
| J | 1.02 |
| L | 2.411 |
| M | 0.339 |
| N | 0.438 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: Hardened Steel
Ball: heat treated, hard chrome plated bearing steel
Finish: zinc plated
Construction: per SAE J1120 Type A
