MCPBearings, Spherical Rod End · Male
MEM-6
MEM-6, Bearings, Spherical Rod End, Male 3/8-24 RH Steel Housing, Hardened Race 0.376 Bore
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$22.23 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 3/8-24 RH |
|---|---|
| Bore diameter | 0.376 |
| Housing construction | Steel |
| Race material | Hardened |
| Grease fitting | No |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $22.23 |
| 2+ | $18.05 |
| 3+ | $15.11 |
| 4+ | $13.02 |
| 5+ | $12.77 |
| 10+ | $11.22 |
| 25+ | $7.56 |
| 50+ | $7.46 |
| 100+ | $6.78 |
| 150+ | $5.92 |
| 300+ | $5.06 |
| 750+ | $4.97 |
| 900+ | $4.97 |

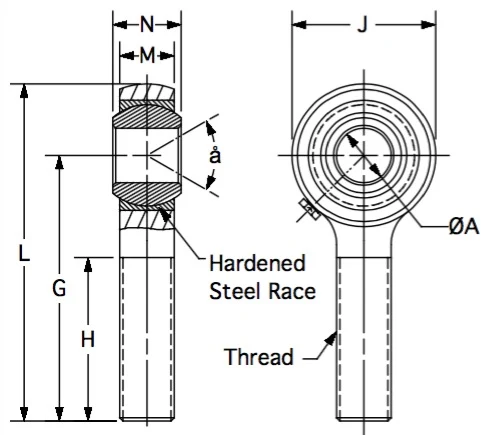

Drawing dimensions
| Threads | 3/8-24 RH |
|---|---|
| Grease Zerk | No |
| A | 0.376 |
| a° | 16 |
| G | 1.96 |
| H | 1.02 |
| J | 1.13 |
| L | 2.525 |
| M | 0.4016 |
| N | 0.50 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: Hardened Steel
Ball: heat treated, hard chrome plated bearing steel
Finish: zinc plated
Construction: per SAE J1120 Type A
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
