MCPClevis and Yoke Ends · Female
MHC-375
MHC-375, Clevis and Yoke Ends, Female 3/8-24 RH 0.370 Pin 'Half Clevis' Forged Design Plated Zinc Yellow

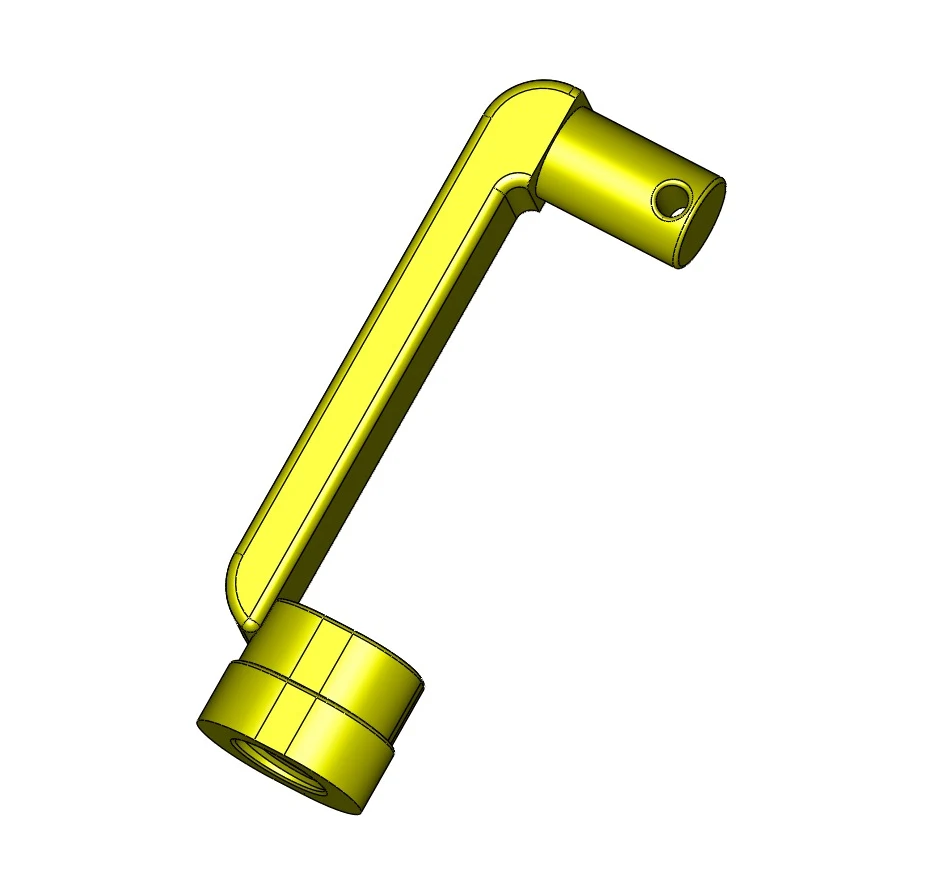

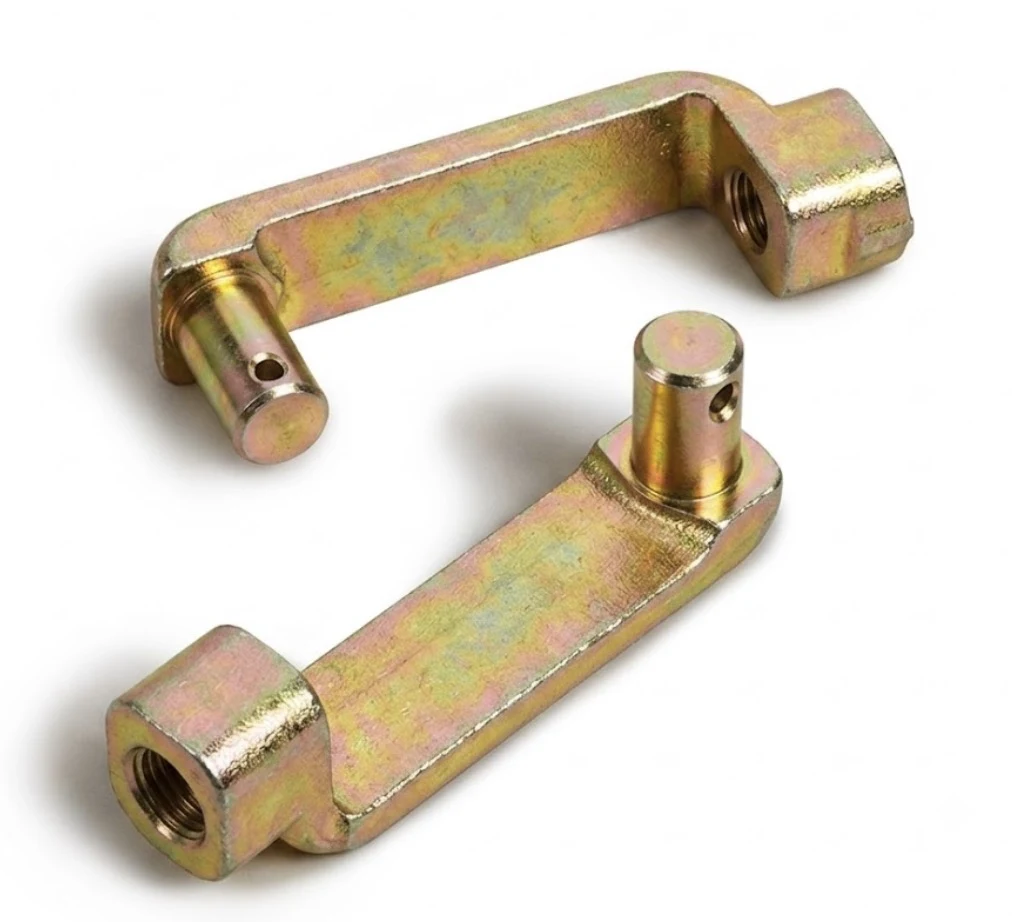

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$68.76 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 3/8-24 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $68.76 |
| 2+ | $51.26 |
| 3+ | $50.42 |
| 4+ | $45.01 |
| 5+ | $44.76 |
| 10+ | $41.76 |
| 25+ | $35.21 |
| 50+ | $30.11 |
| 100+ | $29.56 |
| 250+ | $29.53 |
| 500+ | $29.52 |

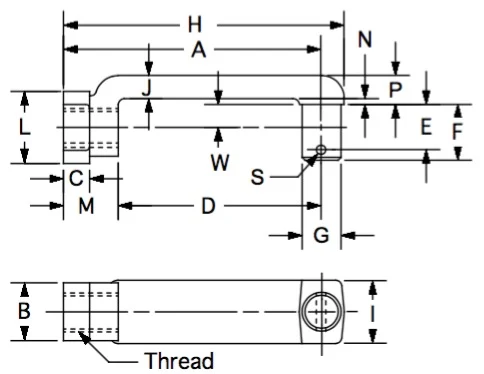

Drawing dimensions
| Threads | 3/8-24 RH |
|---|---|
| A | 2.50 |
| B | 0.562 |
| C | 0.260 |
| D | 1.969 |
| E | 0.494 |
| F | 0.594 |
| G | 0.3705 |
| H | 2.707 |
| I | 0.625 |
| J | 0.219 |
| L | 0.6875 |
| M | 0.531 |
| N | 0.062 |
| P | 0.281 |
| S | 0.119 |
Lettered dimensions refer to the drawing for this part.
