MCPClevis and Yoke Ends · Female
MHC-375S

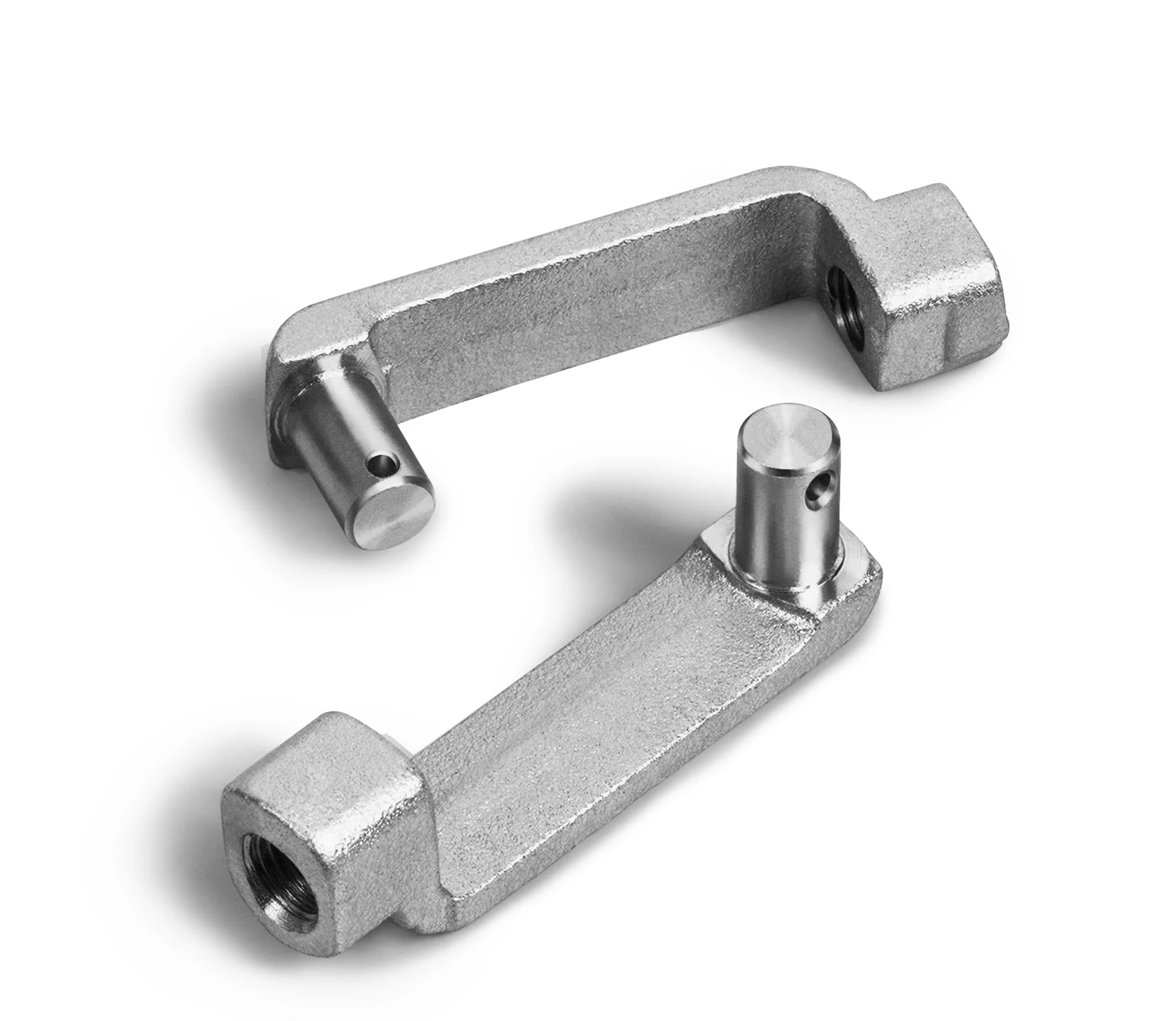

MHC-375S, Clevis and Yoke Ends, Female 1/4-28 RH 0.370 Pin 'Half Clevis' Forged Design Plated Zinc Clear Hex Free
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$74.98 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/4-28 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $74.98 |
| 2+ | $56.02 |
| 3+ | $55.18 |
| 4+ | $49.28 |
| 5+ | $49.03 |
| 10+ | $45.79 |
| 25+ | $38.63 |
| 50+ | $33.04 |
| 150+ | $32.42 |
| 200+ | $32.41 |
| 250+ | $32.41 |
| 500+ | $32.40 |
Drawing dimensions
| Threads | 1/4-28 RH |
|---|---|
| A | 2.50 |
| B | 0.562 |
| C | 0.260 |
| D | 1.969 |
| E | 0.427 |
| F | 0.566 |
| G | 0.3705 |
| H | 2.707 |
| I | 0.625 |
| J | 0.219 |
| L | 0.6875 |
| M | 0.531 |
| N | 0.062 |
| P | 0.281 |
| S | 0.112 |
Lettered dimensions refer to the drawing for this part.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More clevis and yoke ends
Compare specifications and drawings to select the right part.
