MCPBearings, Spherical Rod End · Male
MKM-6S

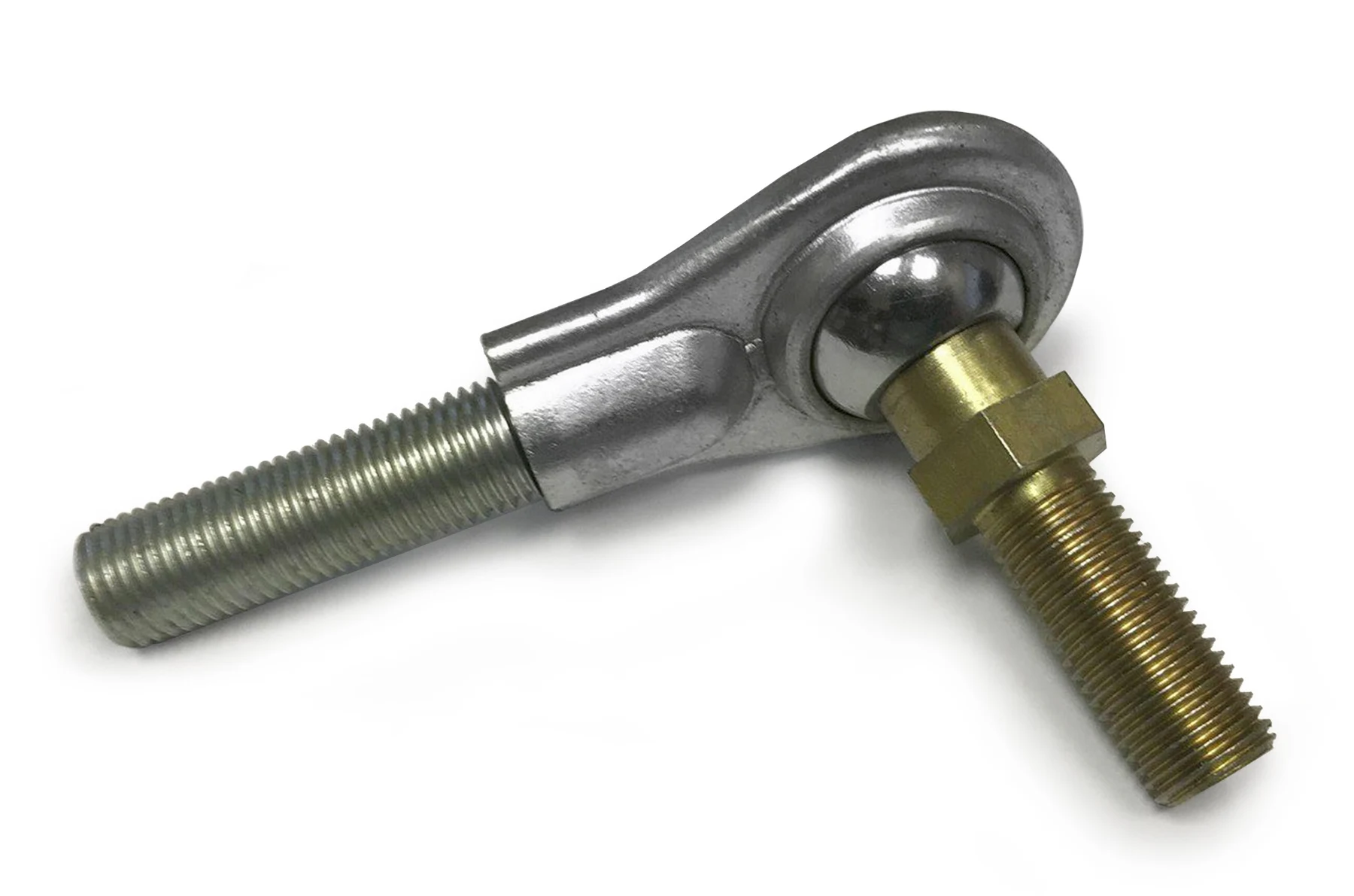

MKM-6S, Bearings, Spherical Rod End, Male 3/8-24 RH 0.376 Bore Light Duty Housing with Integral Ball Stud
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$17.81 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 3/8-24 RH |
|---|---|
| Bore diameter | 0.376 |
| Stud included | Yes |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $17.81 |
| 2+ | $11.40 |
| 3+ | $9.70 |
| 4+ | $9.29 |
| 5+ | $7.95 |
| 10+ | $6.58 |
| 25+ | $4.44 |
| 50+ | $3.91 |
| 100+ | $3.86 |
Drawing dimensions
| Threads | 3/8-24 RH |
|---|---|
| Stud Included | Yes |
| A | 0.376 |
| B | 0.450 |
| D | 0.644 |
| E | 0.906 |
| F | 0.500 |
| G | 2.388 |
| J | 1.125 |
| M | 0.400 |
| N | 0.500 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: MKM-series spherical rod ends may be purchased as individual components, or as part of a linkage assembly (ie: with the connecting rod or tubular linkage).
Configuration: housing and stud dimensions are subject to change based on manufacturing considerations.
Construction: the MKM-series features a low-cost stamped housing.
Left Hand Thread: specify left hand housing threads by adding an "L" before the "-" (i.e., MKML-6).
Mounting Stud: an optional feature specified by adding an "S" after the nominal size (i.e., MKM-6S).
Plating: the low carbon steel, surface hardened ball, and the steel housing are zinc plated.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
