MCPClevis and Yoke Ends · Female
MMC-16

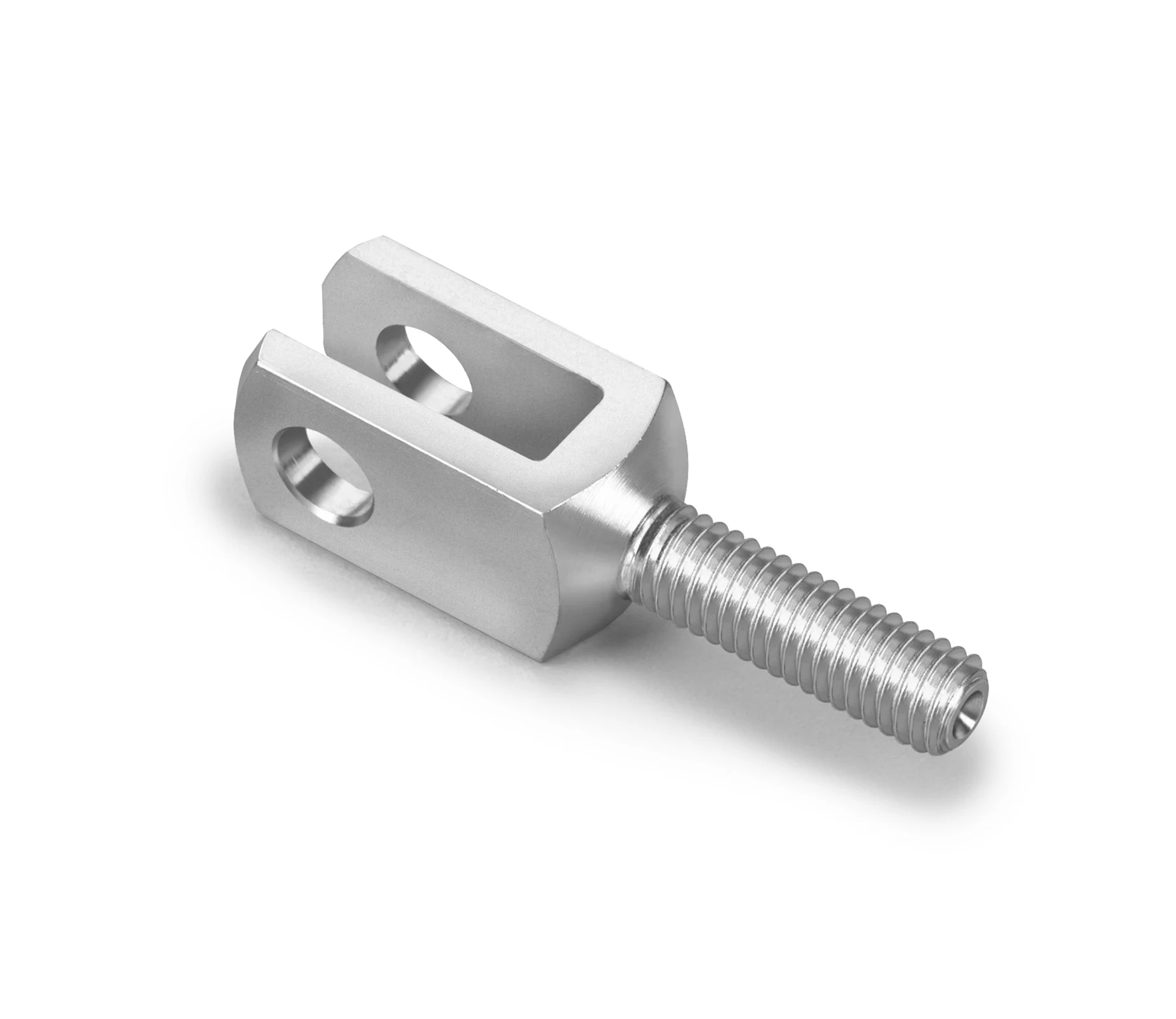

MMC-16, Clevis and Yoke Ends, Female M16 x 2.00 RH 32mm Pin Holes Zinc Clear (Silver) Plating Turned Housing Construction
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$9.52 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M16 x 2 RH |
|---|---|
| Finish / plating | Zinc Clear |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $9.52 |
| 2+ | $7.02 |
| 3+ | $6.11 |
| 4+ | $4.35 |
| 5+ | $4.10 |
| 10+ | $3.30 |
| 20+ | $2.67 |
| 30+ | $2.29 |
| 40+ | $2.07 |
| 80+ | $1.55 |

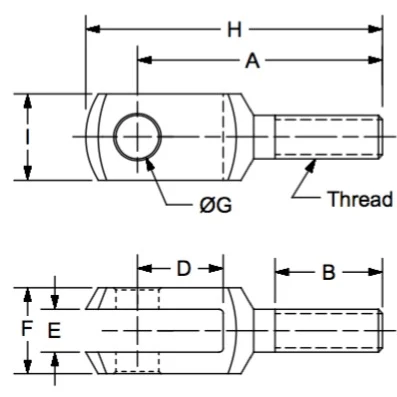

Drawing dimensions
| Threads | M16 x 2.00 RH |
|---|---|
| Plating | Zinc Clear |
| A | 89 |
| B | 40 |
| D | 32 |
| E | 16 |
| F | 32 |
| G | 16 |
| H | 108 |
| I | 32 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: metric clevis ends (also called "yoke ends") are typically assembled to the end of a rod, pipe, tube or cable linkage and are then attached via a clevis pin to a mounting point.
Attaching Hardware: Metric clevis spring pins, cotter pins, safety clips, etc. are available.
Construction: Per DIN 71752.
Cost Savings Tip: cost effective designs should always include the entire tube-nut-yoke assembly, as opposed to purchasing these components separately.
Finish: plated zinc with a zinc clear dichromate treatment.
Material: low carbon steel.
