MCPBall Joints · Male
MMIL375
MMIL375, Ball Joints, Male 3/8-24 RH Housing 3/8-24 RH Stud Inline Plated Zinc Yellow
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$22.03 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing thread | 3/8-24 RH |
|---|---|
| Stud thread | 3/8-24 RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $22.03 |
| 2+ | $17.87 |
| 3+ | $14.95 |
| 4+ | $12.88 |
| 5+ | $12.63 |
| 10+ | $11.09 |
| 25+ | $7.47 |
| 50+ | $7.37 |
| 100+ | $6.70 |

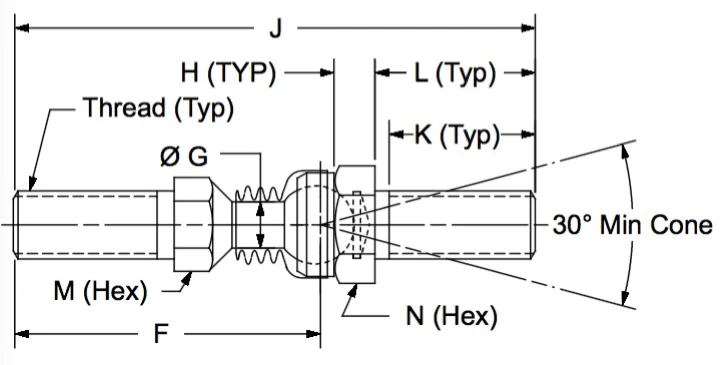

Drawing dimensions
| Threads | 3/8-24 RH |
|---|---|
| F | 2.130 |
| G | 0.270 |
| H | 0.218 |
| J | 3.500 |
| K | 0.938 |
| L | 1.000 |
| M Hex | 0.500 |
| N Hex | 0.625 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: MM-series Ball Joints are used in light duty applications where the where the push/pull force in the linkage system is transferred generally along the centerline of the linkage itself. The ball stud provides some conical movement to allow for misalignment in the system.
Material: low carbon steel. Heat treated ball stud.
Metric: metric versions are available in volume.
Plating: plated zinc with a yellow dichromate finish.
Specials: Special sizes and configurations are available in volume.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
