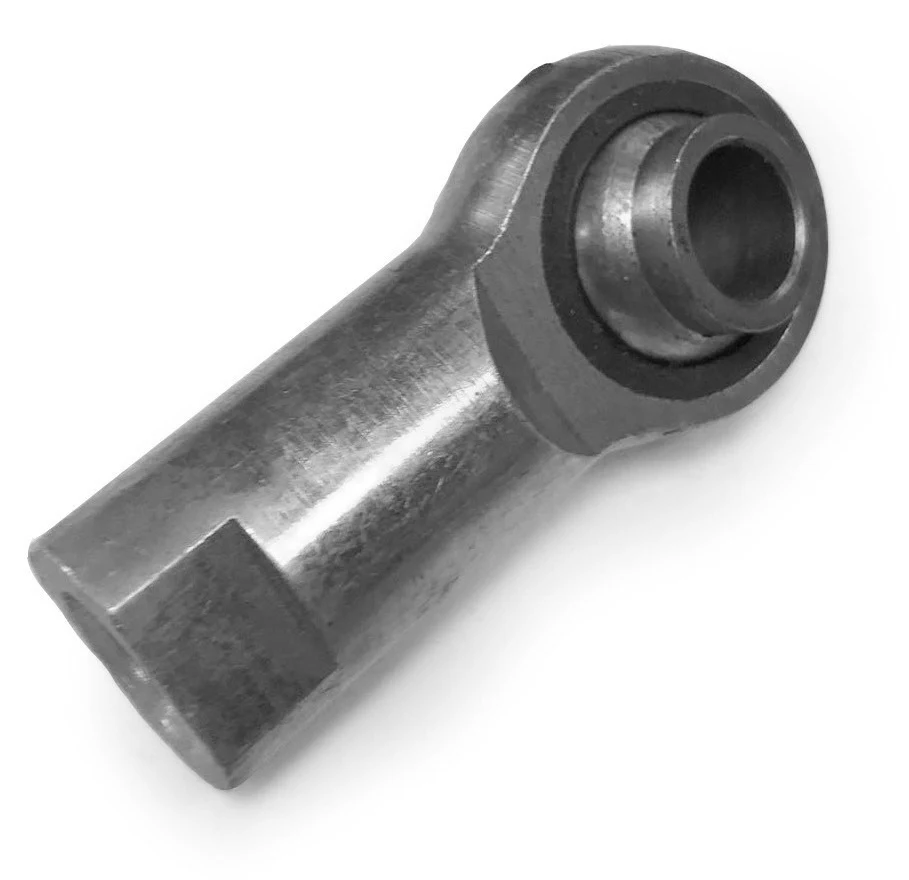

MPF-10mmT-ZCHF, Bearings, Spherical Rod End, Female M10 x 1.50 RH Steel Housing, Nylon Race Trunion
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$21.40 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M10 x 1.5 RH |
|---|---|
| Housing construction | Steel |
| Race material | Nylon |
| Stud included | No |
| Finish / plating | ZCHF |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $21.40 |
| 2+ | $17.30 |
| 3+ | $14.47 |
| 4+ | $12.45 |
| 5+ | $12.20 |
| 10+ | $10.70 |
| 25+ | $7.20 |
| 50+ | $7.10 |
| 100+ | $6.45 |
| 250+ | $4.82 |
| 500+ | $4.81 |
| 1,000+ | $4.73 |

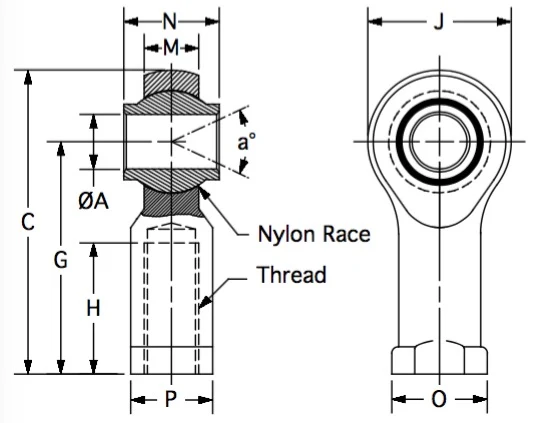

Drawing dimensions
| Threads | M10 x 1.50 RH |
|---|---|
| Stud Included | No |
| Plating | ZCHF |
| A | 0.394 |
| C | 2.125 |
| G | 1.625 |
| H | 0.937 |
| J | 1.090 |
| M | 0.407 |
| N | 0.750 |
| O | 0.687 |
| P | 0.562 |
| a° | 25 |
Lettered dimensions refer to the drawing for this part.
Product information
Configuration: housing and stud dimensions are subject to change based on manufacturing considerations.
Construction: This series features an injection molded, fiber reinforced nylon bearing race. The ball is low carbon steel, surface hardened for wear resistance and plated for corrosion resistance. The housing is low carbon steel, plated and dichromate treated for corrosion resistance.
Left Hand Thread: specify left hand housing threads by adding an "L" before the "-" (i.e., MPFL-10mmT).
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More bearings, spherical rod end
Compare specifications and drawings to select the right part.
