Bearings, Spherical Rod End · Female

MSF-10Z (grease zerk)

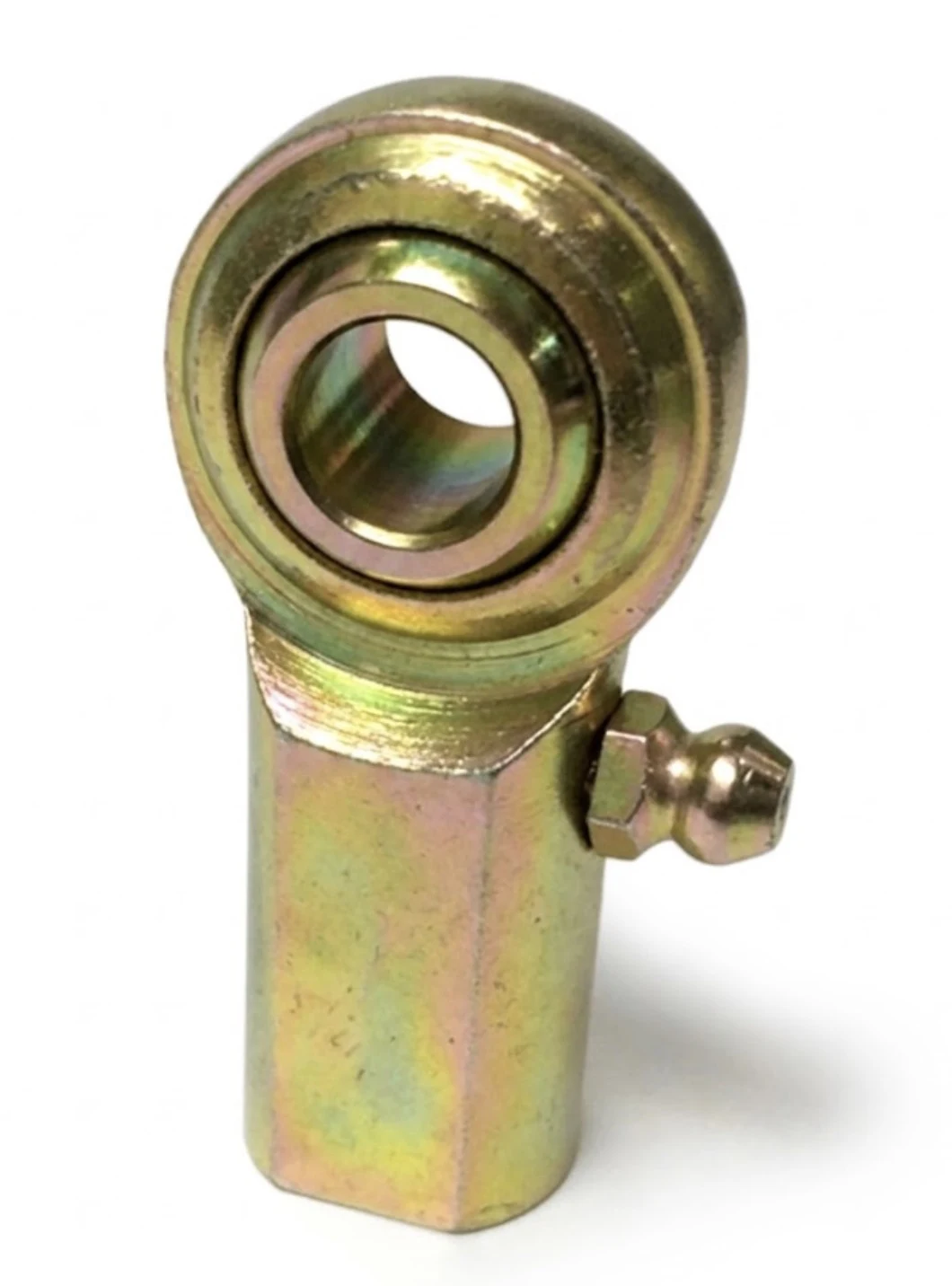

MSF-10Z (grease zerk), Bearings, Spherical Rod End, Female 5/8-18 RH Steel Housing, Steel Race with Grease Zerk

MSF-10Z (grease zerk) dimension drawing 1 — Dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$49.82 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Thread	5/8-18 RH
Housing construction	Steel
Race material	Steel
Stud included	No
Finish / plating	Zinc Yellow

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

Quantity	Price per piece
1+	$49.82
2+	$43.32
3+	$42.49
4+	$32.47
5+	$32.22
10+	$28.52
20+	$26.67
30+	$25.79
40+	$22.55
80+	$19.28
120+	$19.26
200+	$18.93
400+	$18.90
1,000+	$18.89

Drawing dimensions

Threads	5/8-18 RH
Stud Included	No
Plating	Zinc Yellow
A	0.626
B	na
C	3.250
D	na
E	na
F	na
G	2.500
H	1.500
J	1.500
K	na
M	0.562
N	0.750
O	1.000
P	0.875

Lettered dimensions refer to the drawing for this part.

Product information

Construction: The MSF-series features a close fit between the ball and the low carbon steel housing that allows the housing member itself to act as the bearing race. The ball is low carbon steel, surface hardened for wear resistance and plated for corrosion resistance. The housing is plated and dichromate treated for corrosion resistance. Mounting Stud: an optional feature specified by adding an "S" after the nominal size (i.e., MSF-6S), mounting studs are made from low carbon steel, and are plated and dichromate treated for corrosion resistance. Standard stud threads are right hand.
